Tire Cranes & Manipulators

Small OTR Articulating Cranes

Articulating cranes for the mini to mid-size OTR tire body family with capacities ranging from 5,000 lbs. up to 10,000 lbs.

Large OTR Articulating Cranes

When you need something that can handle it all. A rotation system, driven by a worm gear / pinion system ensures rock solid performance.

Tire Manipulators

Adding a tire manipulator offers a high degree of articulation and rotation, with some models offering continuous rotating pads.

Let's find you an OTR series truck body.

ORO OTR Series

Stellar® Small OTRArticulating Cranes

Articulating cranes for the mini to mid-size OTR tire body family with capacities
ranging from 5,000 lbs. to 10,000 lbs.

Learn More At Stellar®

3200 | Articulating Crane

5,000 lb. capacity

with 17 ft. reach
Hydraulic Only
  • Crane Rating 32,000 ft-lb (4.42 tm)
  • Max Horizontal Reach 17' (4.27 m) from CL of Truck
  • Max Vertical Lift 18' (5.49 m) from Truck Frame
  • Lifting Capacity 5,000 lbs @ 9' (2,270 kg @ 2.74 m)
  • 2,200 lbs. @ 17' (1,000 kg @ 5.18 m)
  • Min. Rec. Chassis (GVWR) 14,500 lbs.

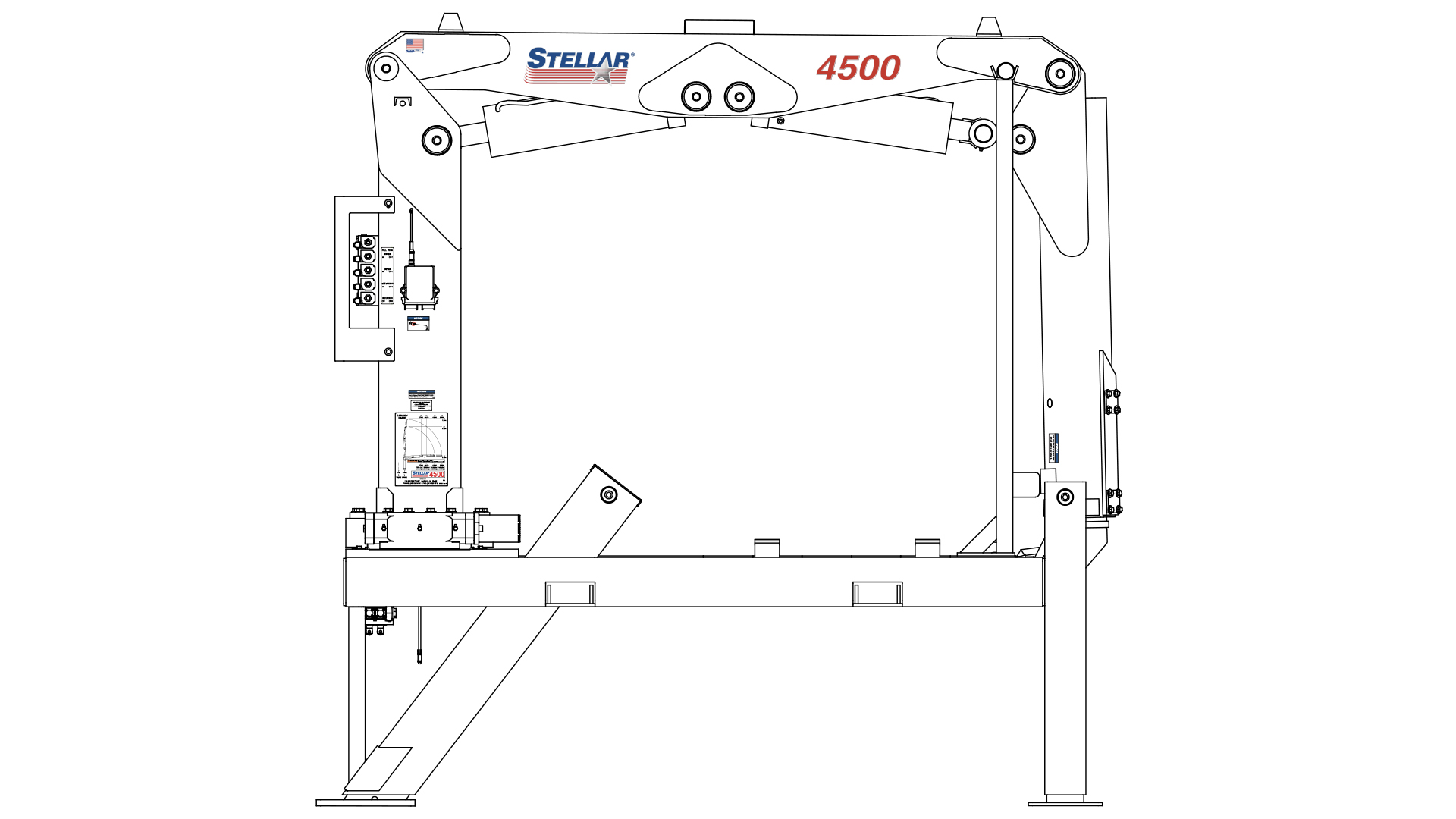

4500 | Articulating Crane

7,500 lb. capacity

with 17 ft. reach
Hydraulic Only
  • Crane Rating 45,000 ft-lb (6.22 tm)
  • Max Horizontal Reach 17' (5.18 m) from CL of Truck
  • Max Vertical Lift 20' (6.10 m) from Truck Frame
  • Lifting Capacity 7,500 lbs @ 9' (3,400 kg @ 2.74 m)
  • 3,200 lbs. @ 17' (1,450 kg @ 5.18 m)
  • Min. Rec. Chassis (GVWR) 14,500 lbs.

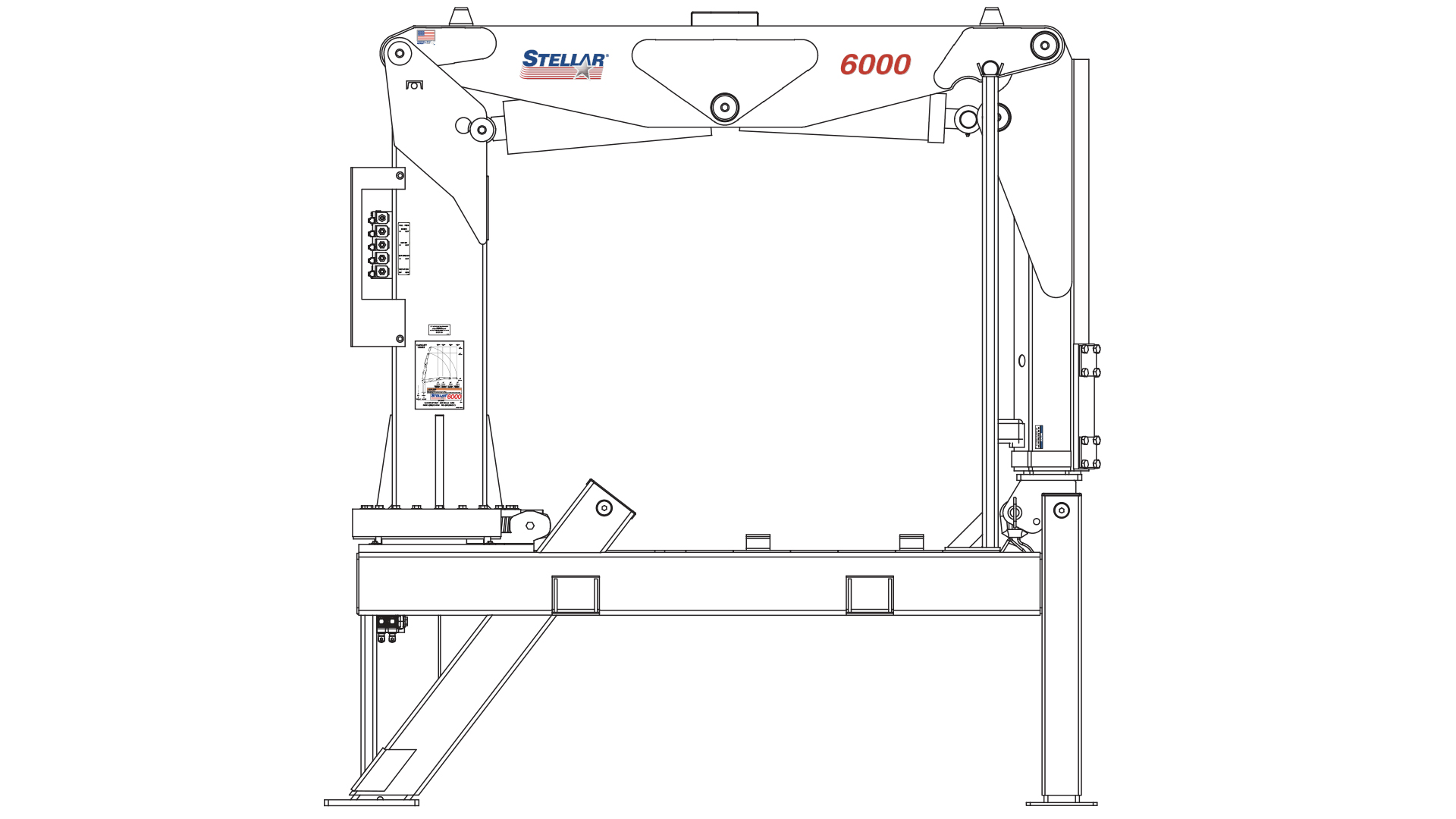

6000 | Articulating Crane

10,000 lb. capacity

with 17 ft. reach
Hydraulic Only
  • Crane Rating 60,000 ft-lb (8.30 tm)
  • Max Horizontal Reach 17' (5.18 m) from CL of Truck
  • Max Vertical Lift 20' (6.10 m) from Truck Frame
  • Lifting Capacity 10,000 lbs @ 9' (4,535 kg @ 2.74 m)
  • 4,250 lbs. @ 17' (1,930 kg @ 5.18 m)
  • Min. Rec. Chassis (GVWR) 26,000 lbs.

Stellar® Large OTRArticulating Cranes

Tire cranes and manipulators for the largest OTR tire bodies with capacities
ranging from 9,000 lbs. to 28,000 lbs.

Learn More At Stellar®

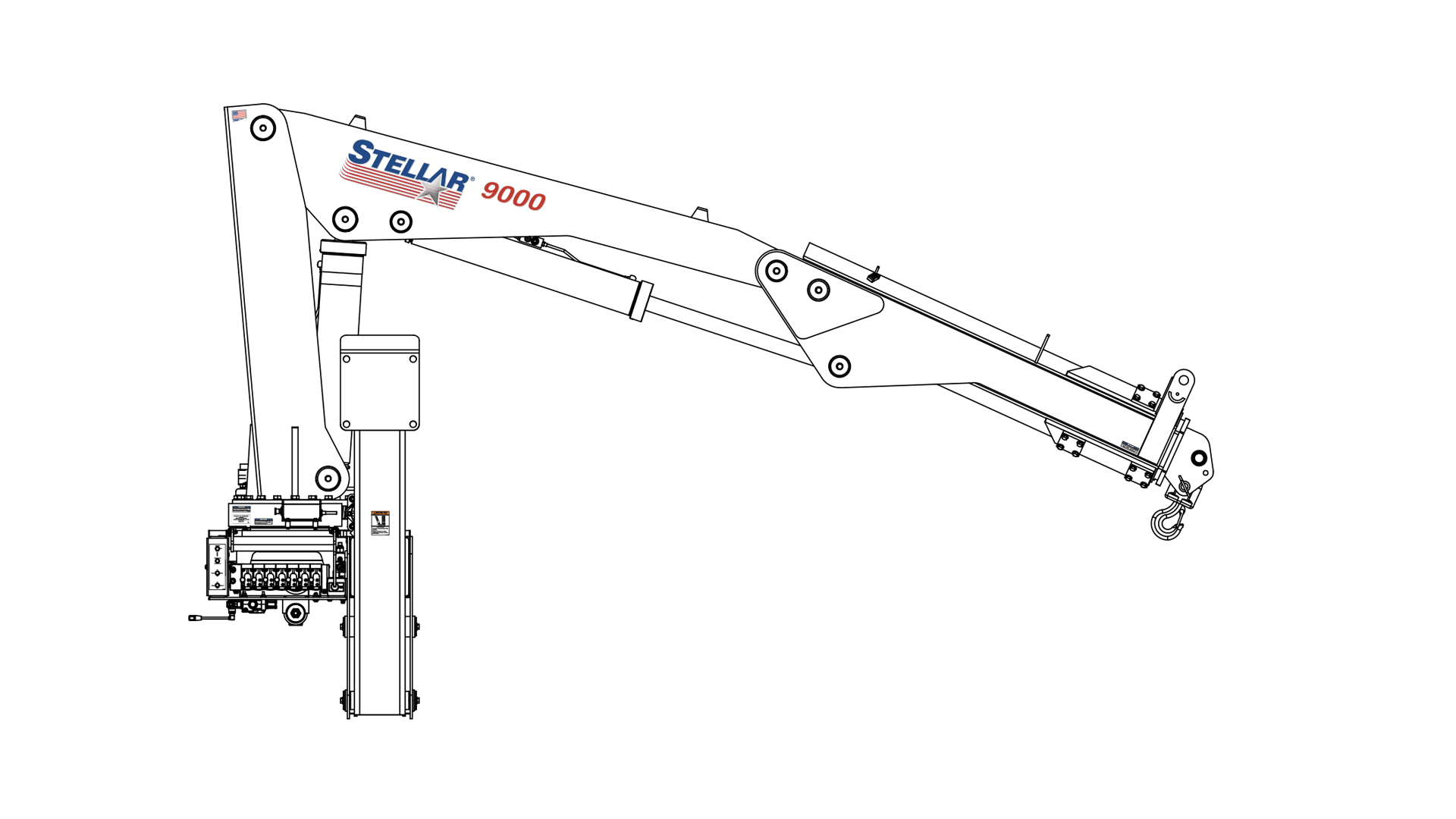

9000 | Articulating Crane

9,000 lb. capacity

with 16' 7 in. reach
Hydraulic Only
  • Crane Rating 90,000 ft-lb (12.44 tm)
  • Max Horizontal Reach 16' 7 (3.99 m) from CL of Crane
  • Max Vertical Lift 22' 3 (6.78 m) from Truck Frame
  • Lifting Capacity 9,000 lbs @ 10' (4,080 kg @ 3.03 m)
  • 5,425 lbs. @ 16' 7 (2,460 kg @ 5.05 m)
  • Min. Rec. Chassis (GVWR) 26,000 lbs.
  • TM 4110

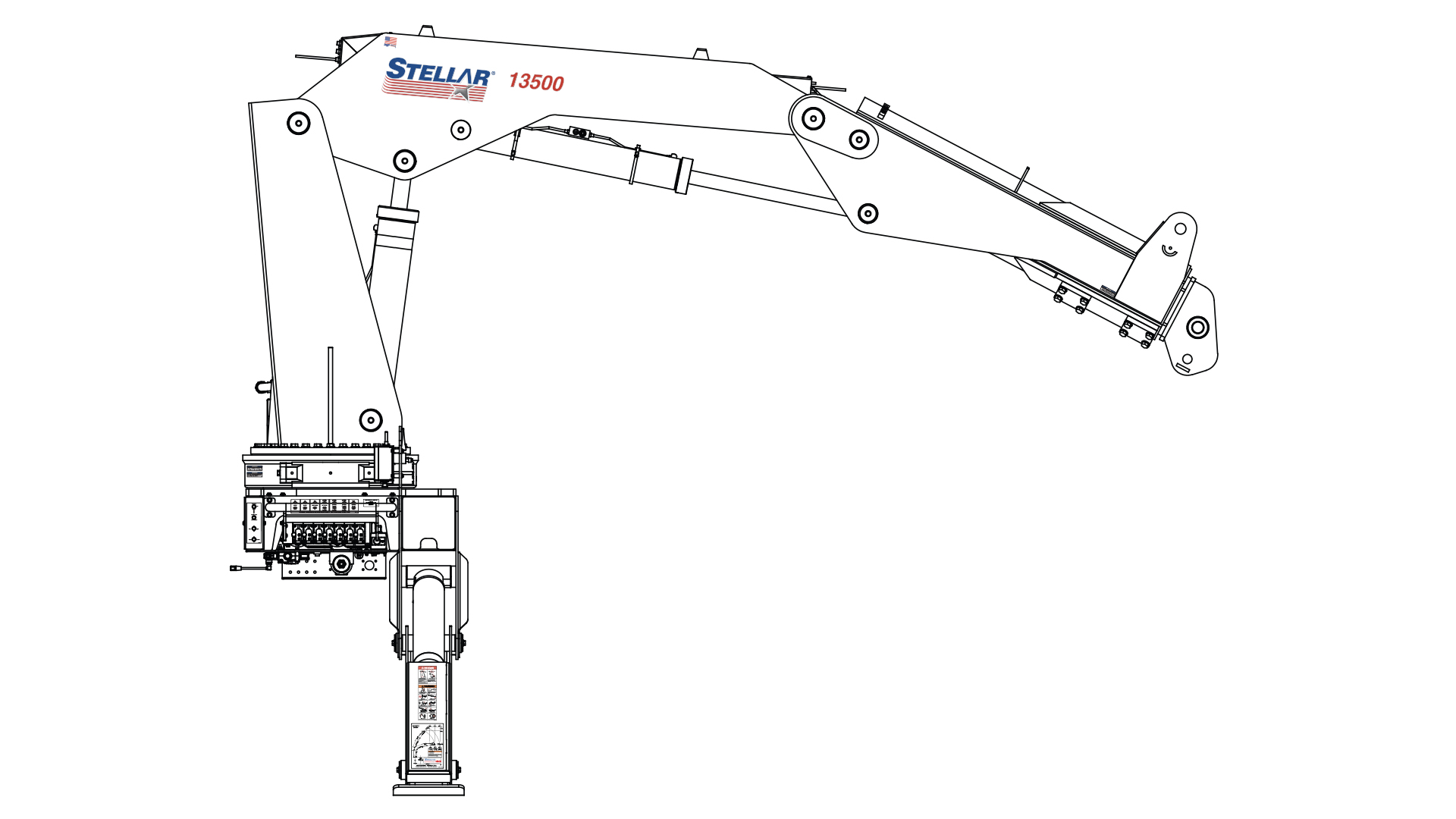

13500 | Articulating Crane

13,500 lb. capacity

with 16' 8 in. reach
Hydraulic Only
  • Crane Rating 135,000 ft-lb (18.6 tm)
  • Max Horizontal Reach 16' 8 (5.08 m) from CL of Crane
  • Max Vertical Lift 24' 7 (7.49 m) from Truck Frame
  • Lifting Capacity 13,500 lbs @ 10' (6,123 kg @ 3.05 m)
  • 8,100 lbs. @ 16' 8 (3,674 kg @ 5.08 m)
  • Min. Rec. Chassis (GVWR) 33,000 lbs.
  • TM 6116

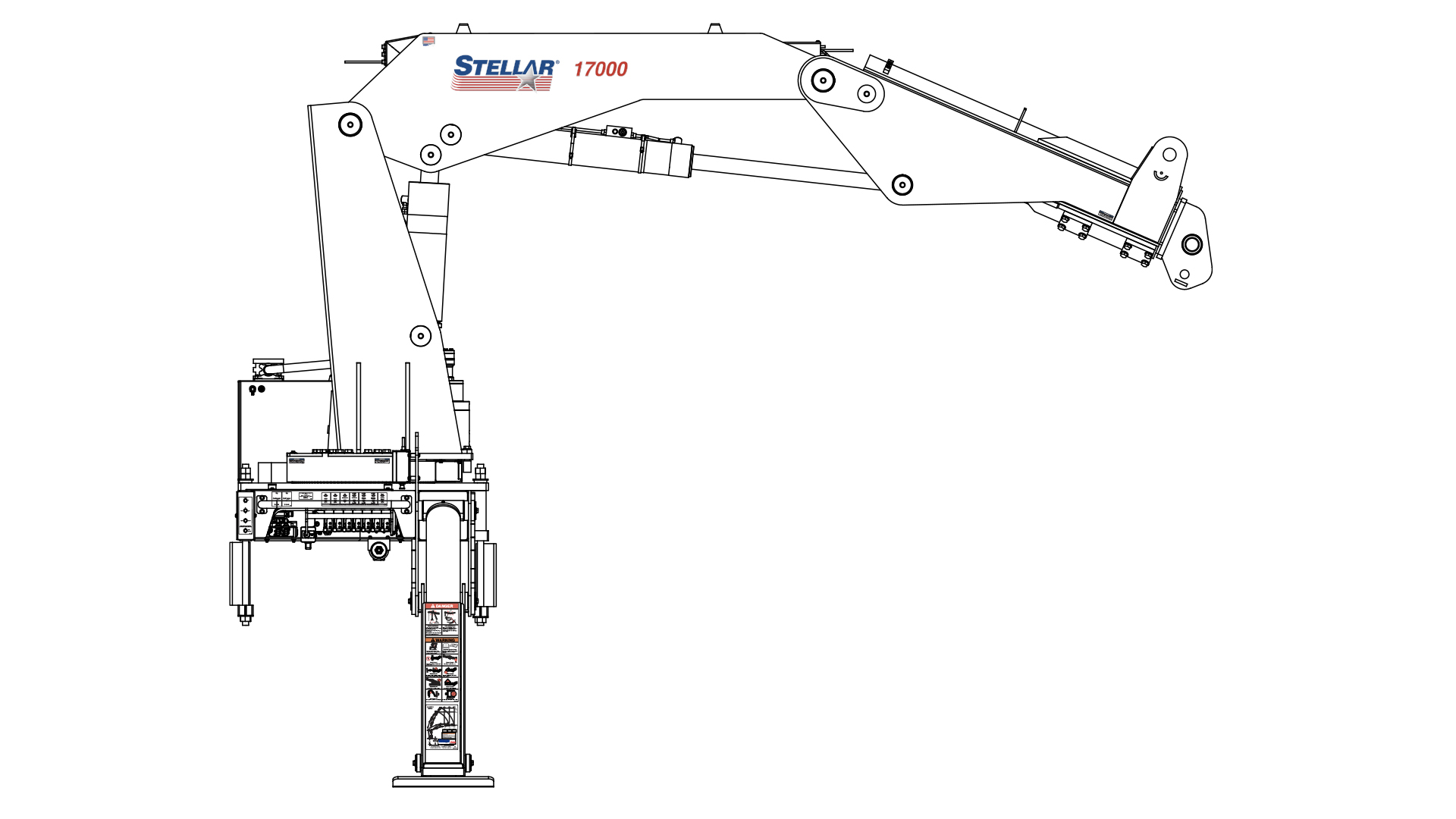

17000 | Articulating Crane

17,000 lb. capacity

with 16' 11 in. reach
Hydraulic Only
  • Crane Rating 170,000 ft-lb (23.5 tm)
  • Max Horizontal Reach 16' 11 (5.15 m) from CL of Crane
  • Max Vertical Lift 25' 8 (7.82 m) from Truck Frame
  • Lifting Capacity 17,000 lbs @ 10' (7,710 kg @ 3.05 m)
  • 10,050 lbs. @ 16' 11 (4,555 kg @ 5.15 m)
  • Min. Rec. Chassis (GVWR) 33,000 lbs.
  • TM 7120

Stellar®Tire Cranes

Get in touch

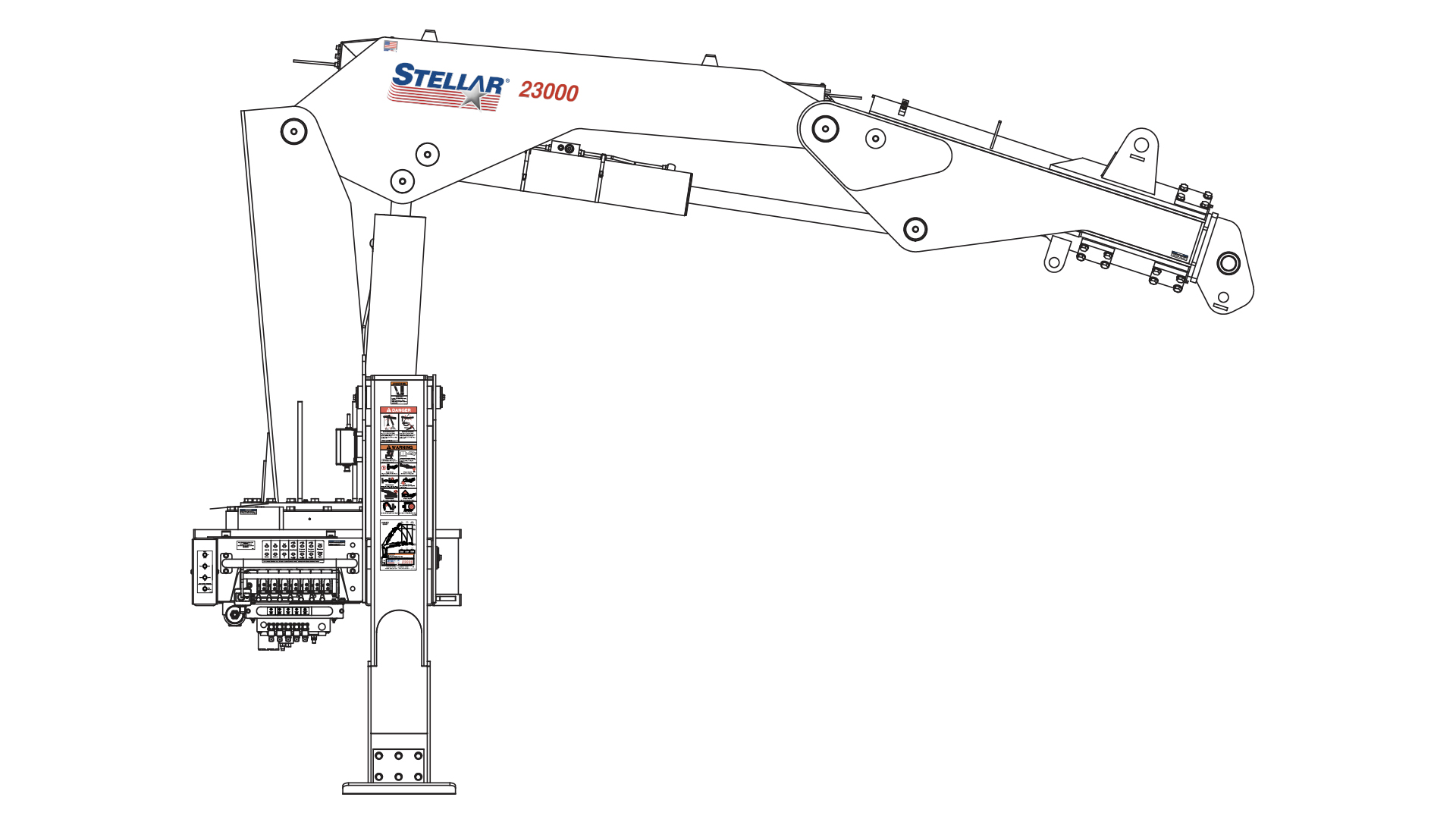

23000 | Articulating Crane

23,000 lb. capacity

with 16' 5 in. reach
Hydraulic Only
  • Crane Rating 230,000 ft-lb (31.8 tm)
  • Max Horizontal Reach 16' 5 (5.00 m) from CL of Crane
  • Max Vertical Lift 25' (7.62 m) from Truck Frame
  • Lifting Capacity 23,000 lbs @ 10' (10,480 kg @ 3.05 m)
  • 14,000 lbs. @ 16' 5 (6,350 kg @ 5.00 m)
  • Min. Rec. Chassis (GVWR) 58,000 lbs.
  • TM 12154

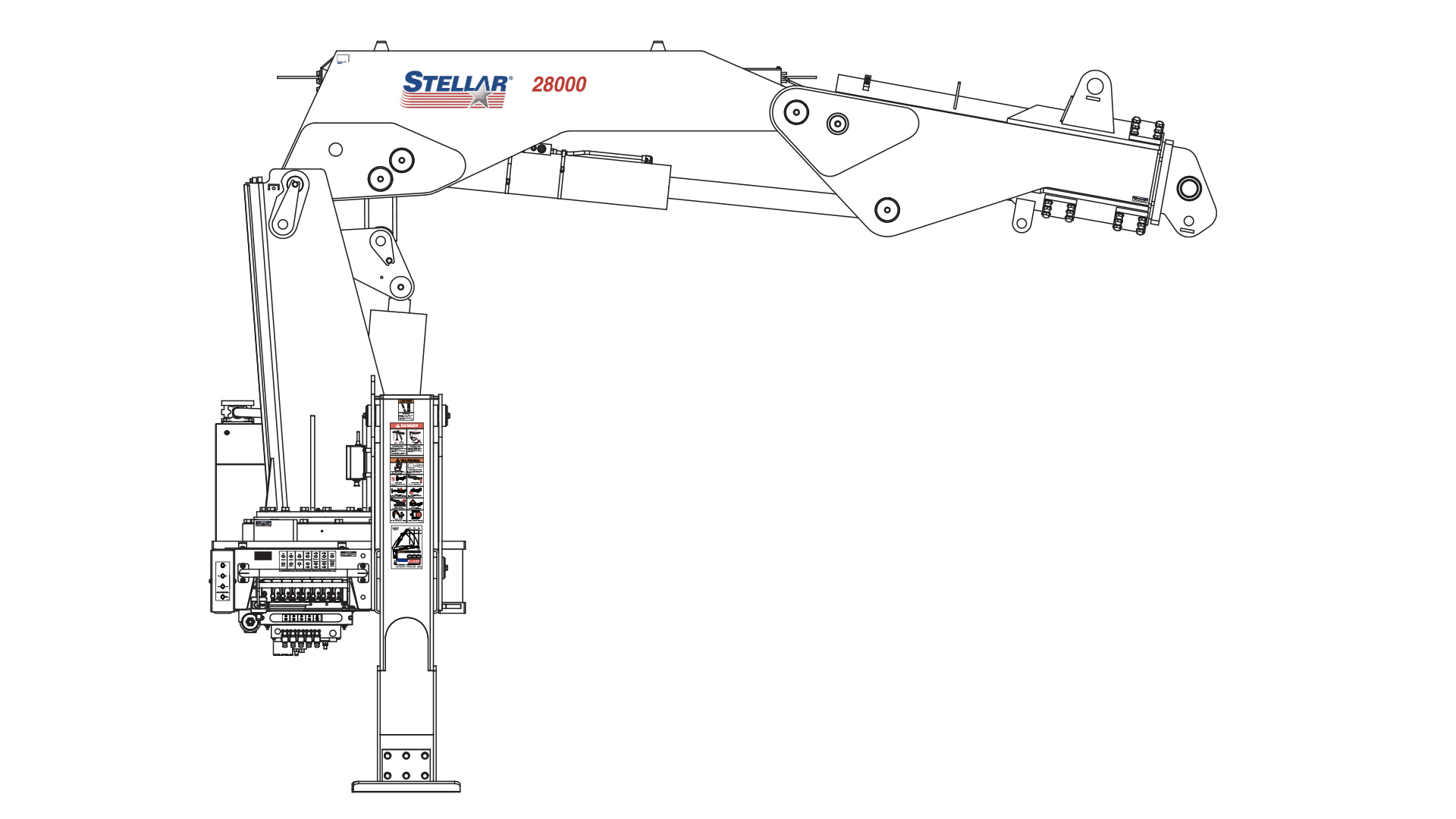

28000 | Articulating Crane

28,000 lb. capacity

with 16' 3 in. reach
Hydraulic Only
  • Crane Rating 280,000 ft-lb (38.71 tm)
  • Max Horizontal Reach 16' 3 (4.95 m) from CL of Crane
  • Max Vertical Lift 25' (7.62 m) from Truck Frame
  • Lifting Capacity 28,000 lbs @ 10' (12,700 kg @ 3.05 m)
  • 17,200 lbs. @ 16' 3 (7,800 kg @ 4.95 m)
  • Min. Rec. Chassis (GVWR) 66,000 lbs.
  • TM 16160

Stellar® TMTire Manipulators

From small tires to some of the largest tires out there, there’s a Stellar® manipulator for the job.

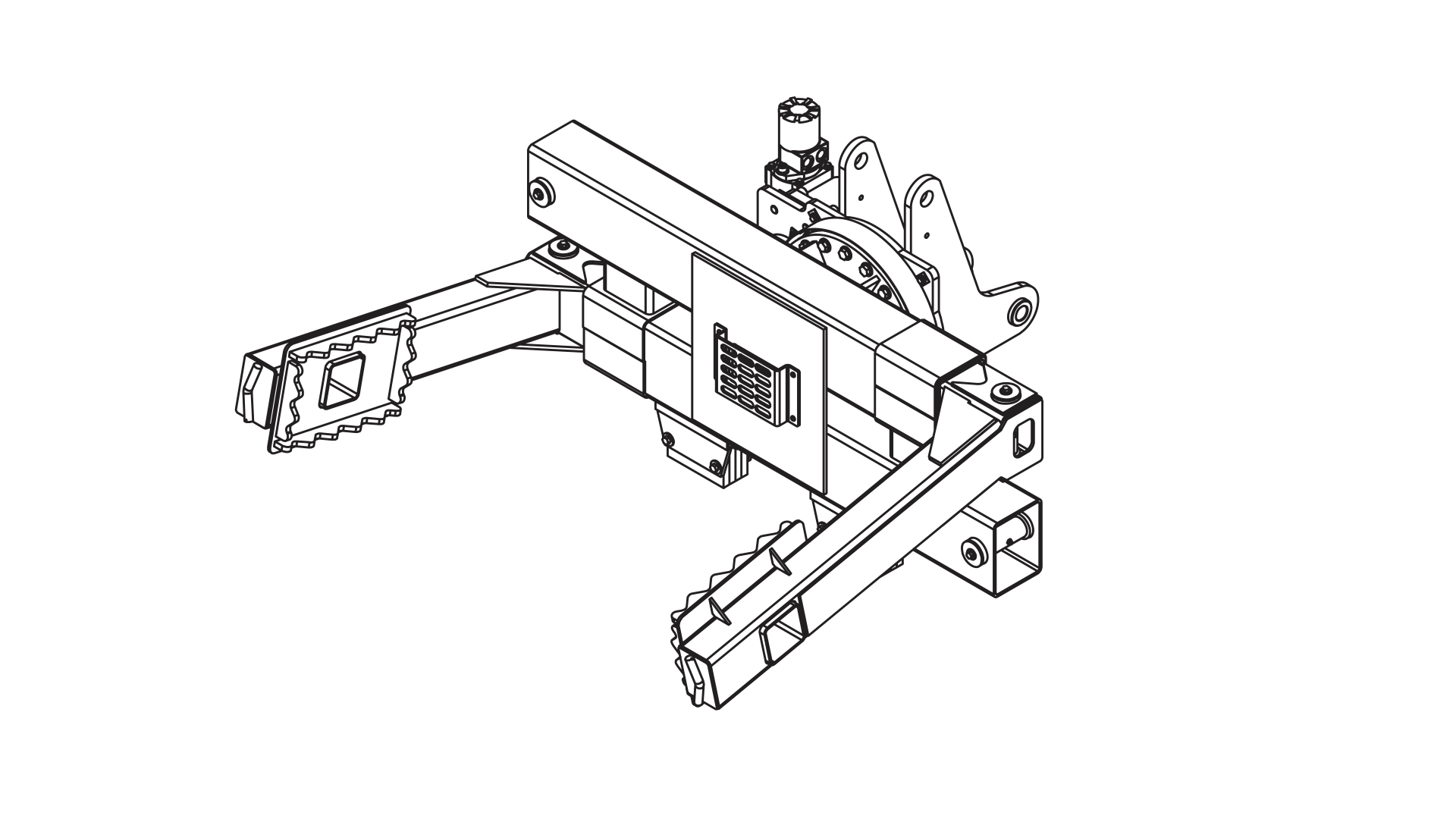

TM4110 | Tire Manipulator

4,600 lb. capacity

@ 19 ft.
Hydraulic Controls
  • Clamping Span Fixed Pads - 48 in to 110 in (121.92 cm to 279.4 cm)
  • Rotating Pads - 47 in to 109 in (119.38 cm to 276.86 cm)
  • Optional Pad Extension 29 in (73.66 cm) arms closed
  • Body Rotation 285° Power
  • Rotation System Rotation bearing and worm-driven gear box

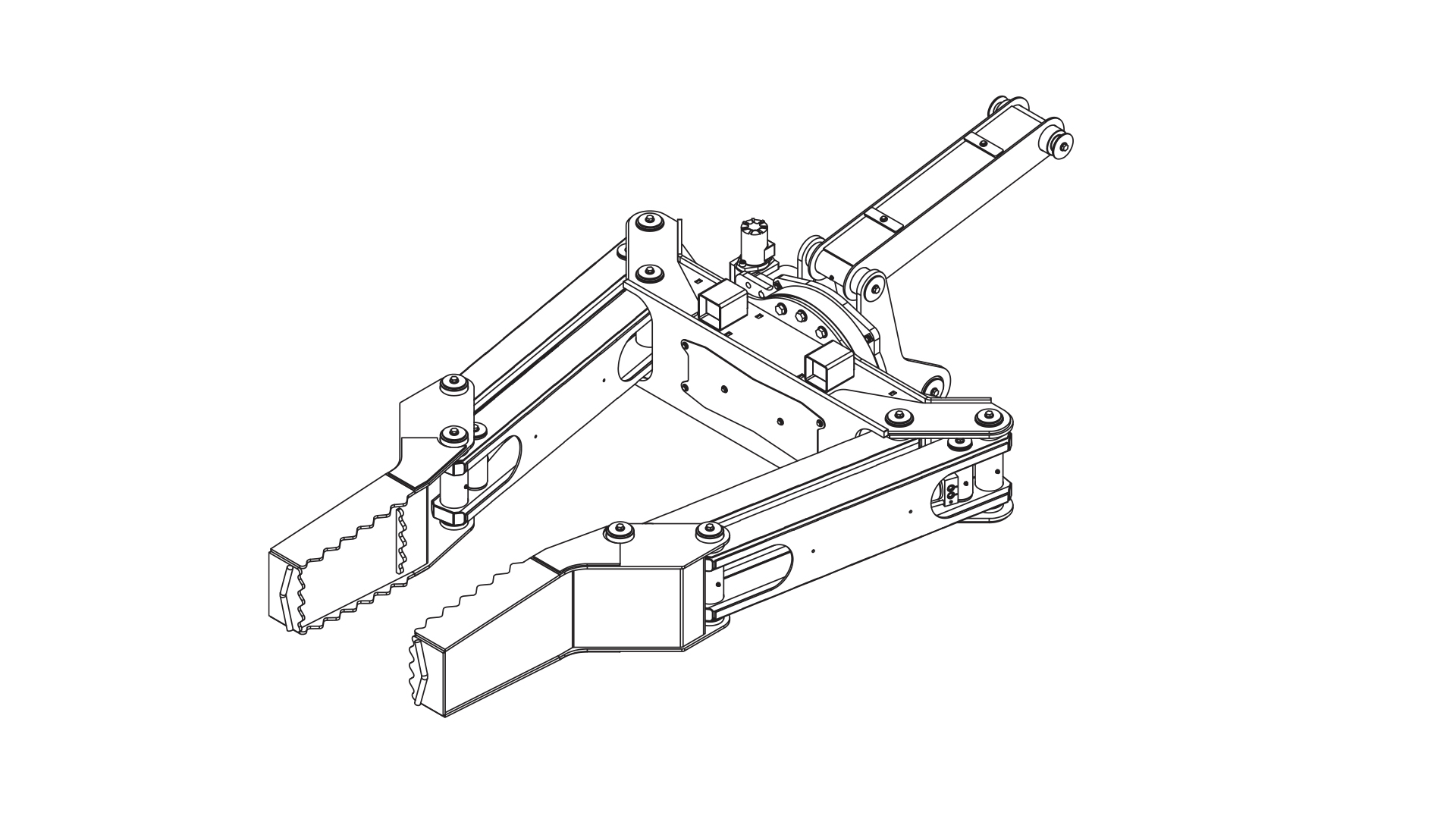

TM6116 | Tire Manipulator

6,000 lb. capacity

@ 19 ft.
Hydraulic Controls
  • Clamping Span Fixed Pads - 19 in to 116 in (48.3 cm to 294.6 cm)
  • Rotating Pads - 17 in to 114 in (43.2 cm to 289.6 cm)
  • Body Rotation 300° Power
  • Rotation System Hourglass worm gear

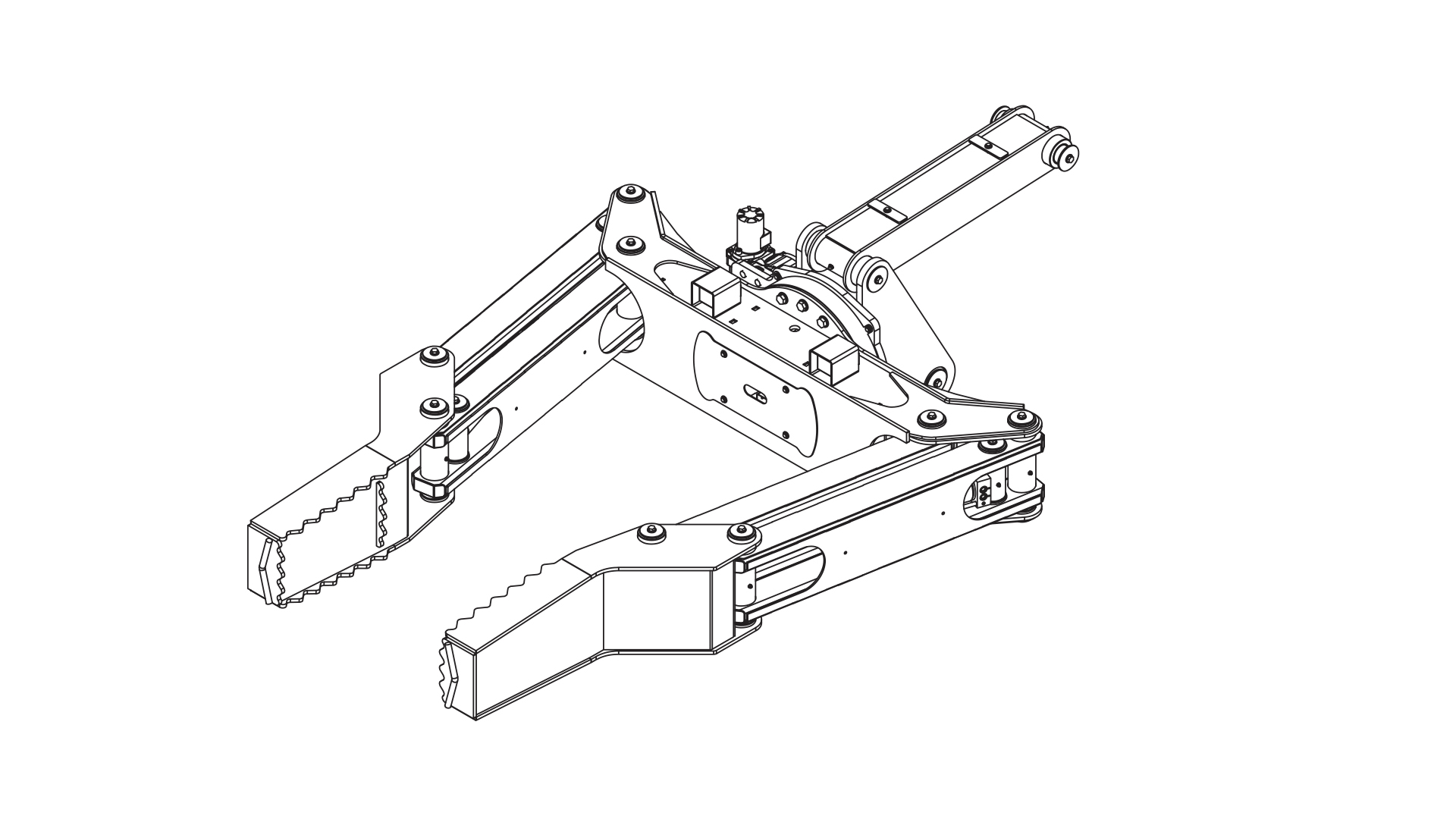

TM7120 | Tire Manipulator

7,200 lb. capacity

@ 20ft.
Hydraulic Controls
  • Clamping Span Fixed Pads - 28 in to 125 in (71 cm to 318 cm)
  • Rotating Pads - 28 in to 125 in (71 cm to 318 cm)
  • Cont. Rotating Pads - 26 in to 123 in (65 cm to 311 cm)
  • Body Rotation 300° Power
  • Rotation System Hourglass worm gear

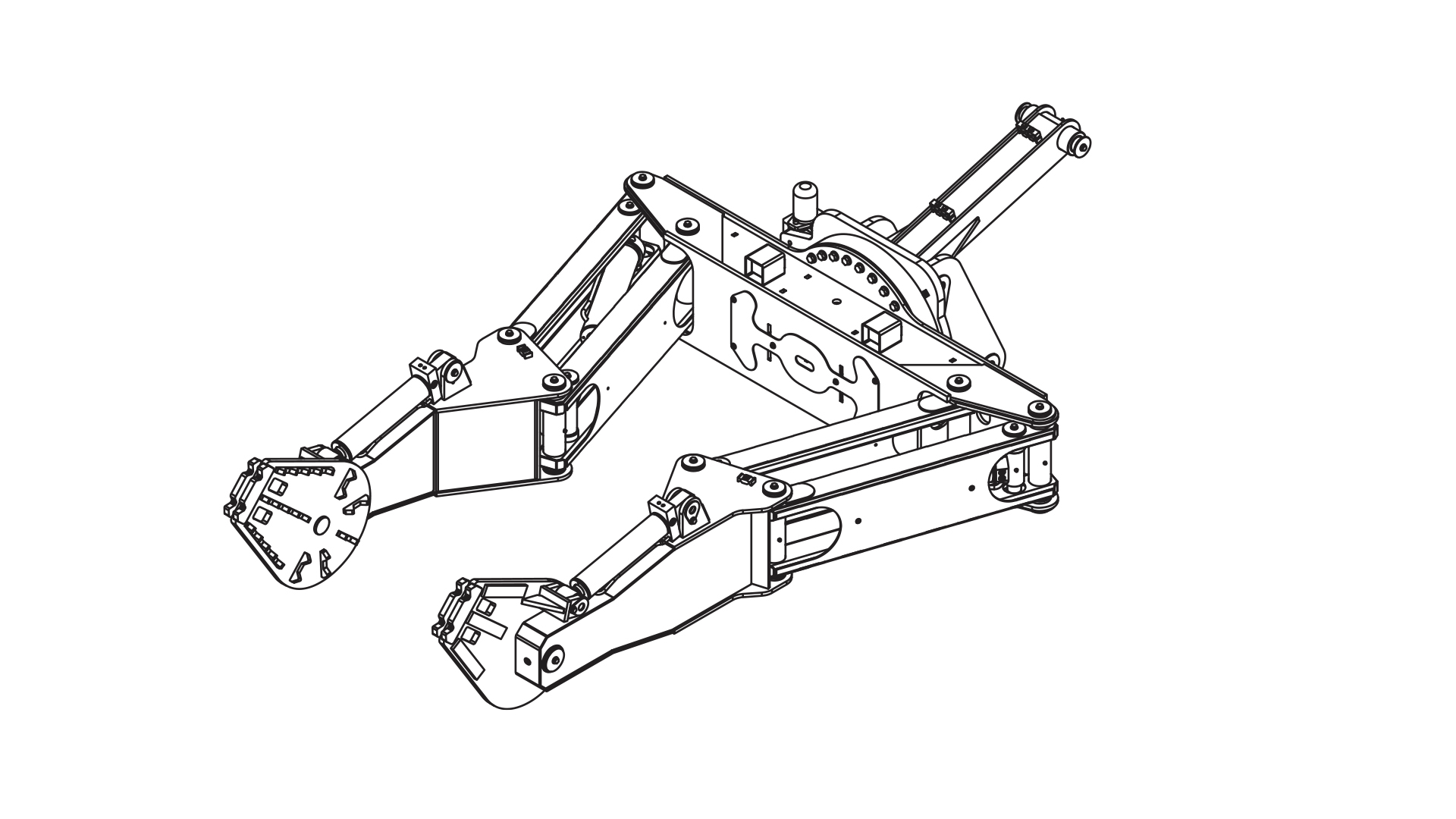

TM12154 | Tire Manipulator

12,000 lb. capacity

with 17 ft. reach
Hydraulic Controls
  • Clamping Span Fixed Pads - 42.6 in to 152.7 in (108 cm to 388 cm)
  • Cont. Rotating Pads - 42.8 in to 152.9 in (109 cm to 388 cm)
  • Body Rotation 315°
  • Rotation System Worm Gear

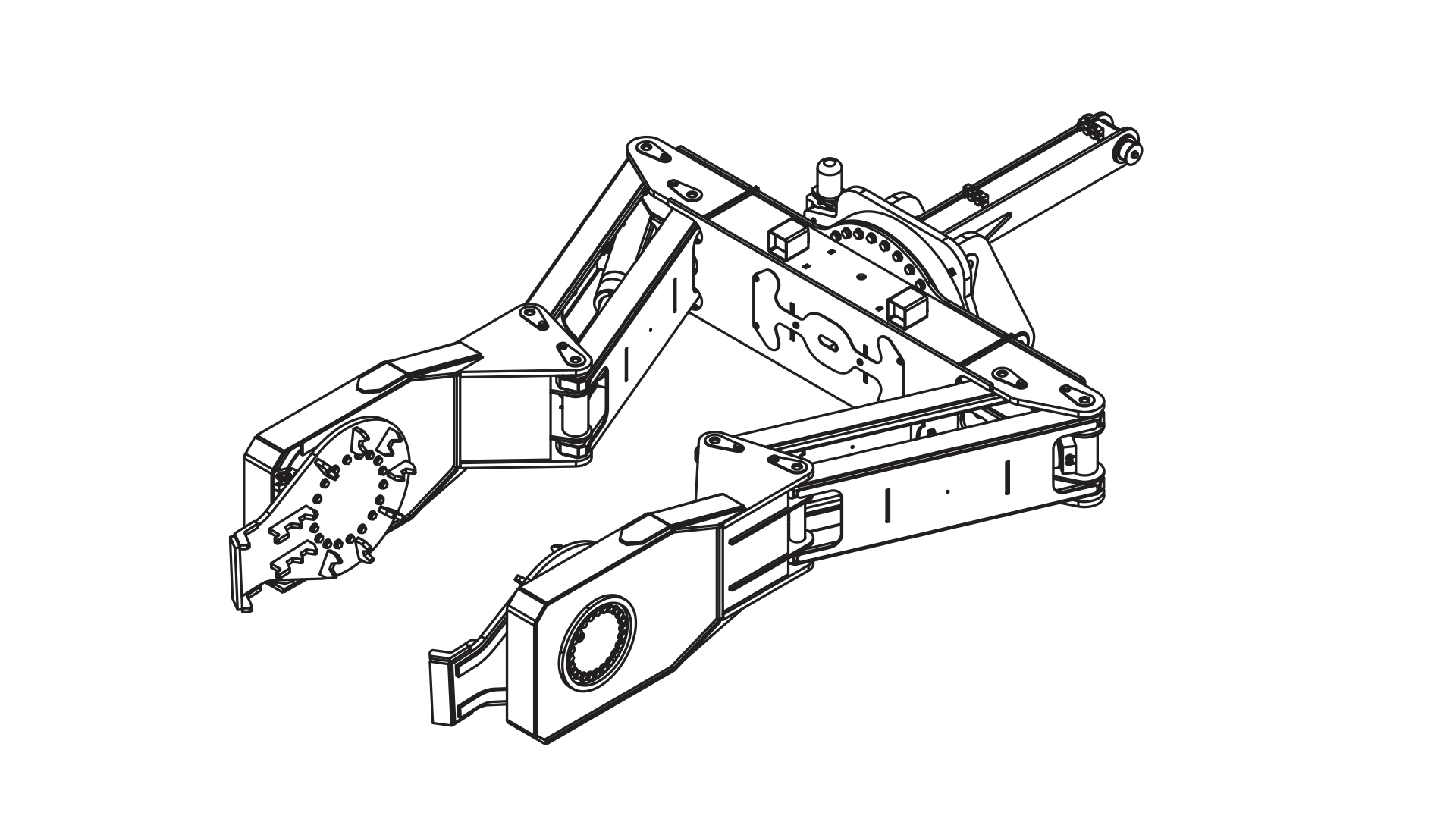

TM16160 | Tire Manipulator

16,500 lb. capacity

with 15 ft. reach
Hydraulic Controls
  • Clamping Span 40 in to 158 in (102 cm to 401 cm)
  • Body Rotation 315°
  • Clamping Pad Rotation 360°
  • Rotation System Worm Gear

Stellar®Tire Manipulators

Get a Quote

We're an authorized Stellar® installer and repair facility.

Interested in getting more information about the full line of Stellar® Tire Crane & Manipulatorsor do you need help with parts & service on your existing fleet?

Get in touch
