Mechanic Cranes

Hexagonal Boom

The boom design is optimized to deliver dramatically less boom flex and side to side movement than other boom designs on the market.

Telematics

With Fleet View, you can optimize your fleet with real-time and historical data beyond the chassis. Having access to crane usage, load trends, compressor usage, and more helps you make informed decisions.

Value-Added Features

Consistently taking input from real users across North America to add features that are designed to allow you to do your job faster and more efficiently than ever before.

Stellar® Light-DutyMechanic Cranes

Stellar® Light-Duty cranes include a standard proportional radio remote control, a planetary winch with a hydraulic/mechanical brake system and hexagonal tubing boom construction.

Learn More At Stellar®

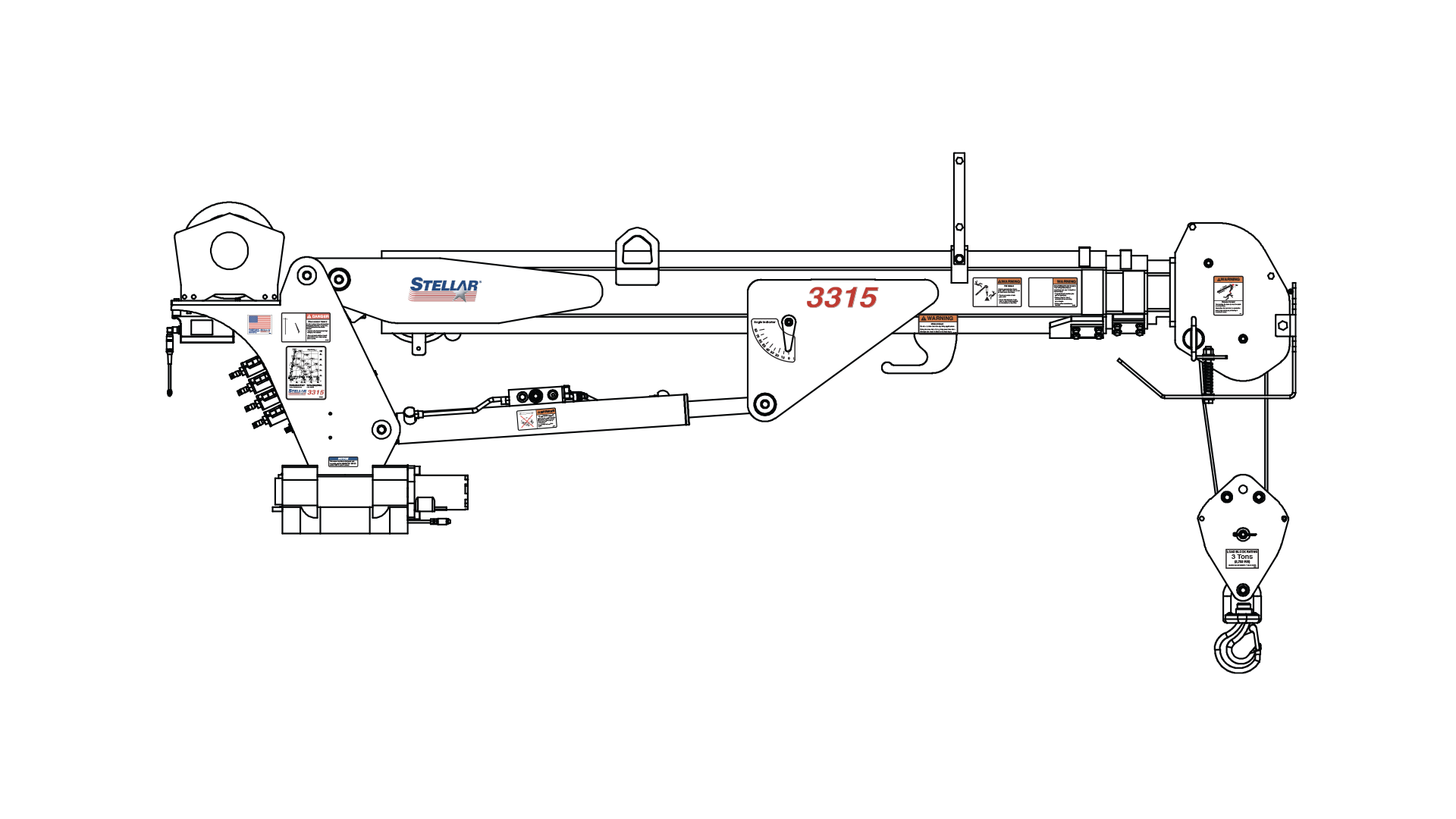

3315 | Telescopic Crane

3,200 lb. capacity

with 15 ft. reach
Hydraulic or Electric Options
  • Crane Rating 11,500 ft-lb (1.59 tm)
  • Max Horizontal Reach 15' (4.57 m) from CL of Crane
  • Max Vertical Lift 17' 8 (5.40 m) from Crane Base
  • Lifting Capacity 3,200 lbs @ 3' 7 (1451 kg @ 1.10 m)
  • 765 lbs. @ 15' (345 kg @ 4.60 m)
  • Min. Rec. Chassis (GVWR) 10,500 lbs.

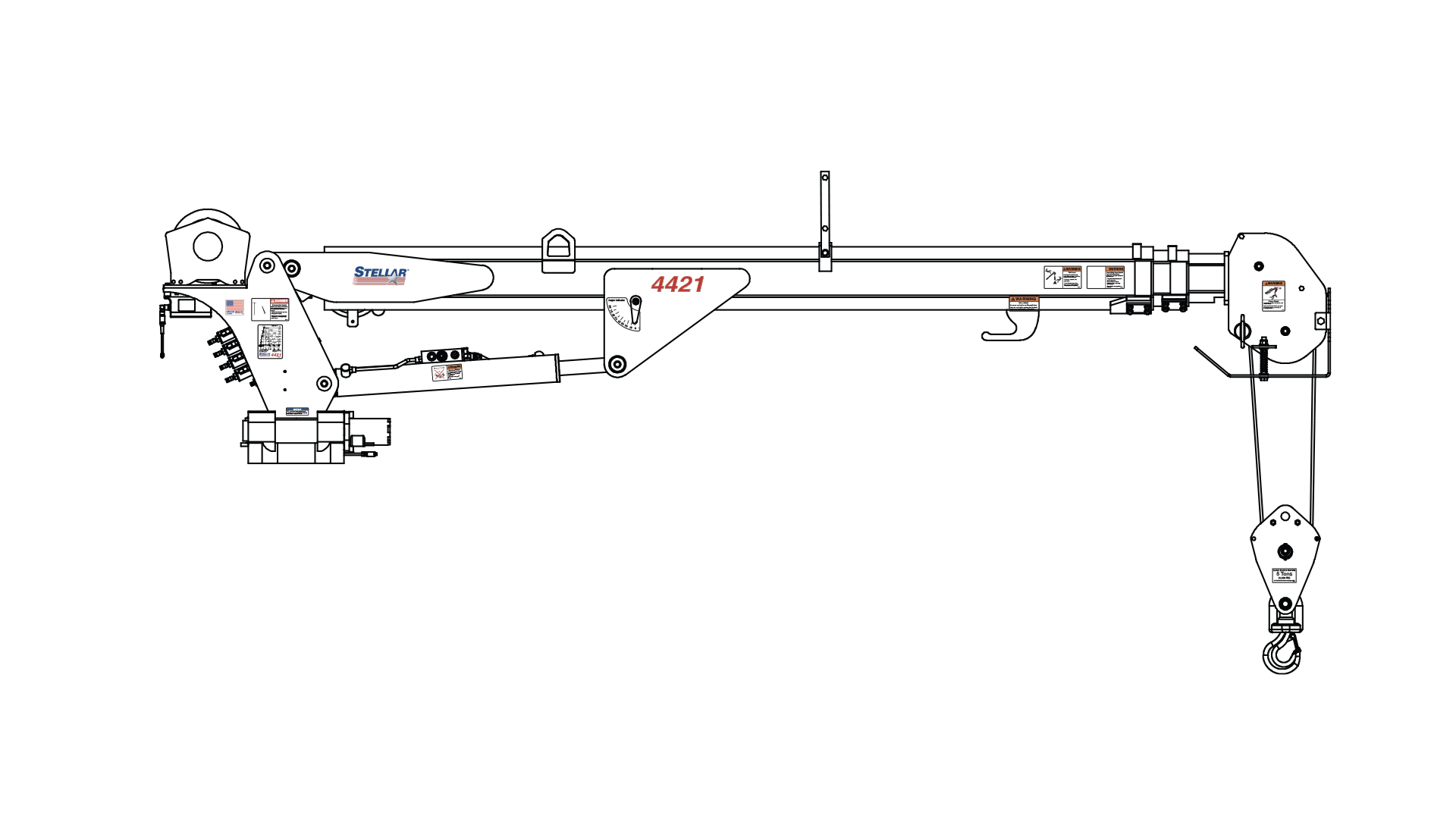

4421 | Telescopic Crane

4,000 lb. capacity

with 21 ft. reach
Hydraulic or Electric Options
  • Crane Rating 16,000 ft-lb (2.23 tm)
  • Max Horizontal Reach 21' (6.40 m) from CL of Crane
  • Max Vertical Lift 22' 7 (6.89 m) from Crane Base
  • Lifting Capacity 4,000 lbs @ 4' (1810 kg @ 1.22 m)
  • 760 lbs. @ 21' (345 kg @ 6.40 m)
  • Min. Rec. Chassis (GVWR) 14,500 lbs.

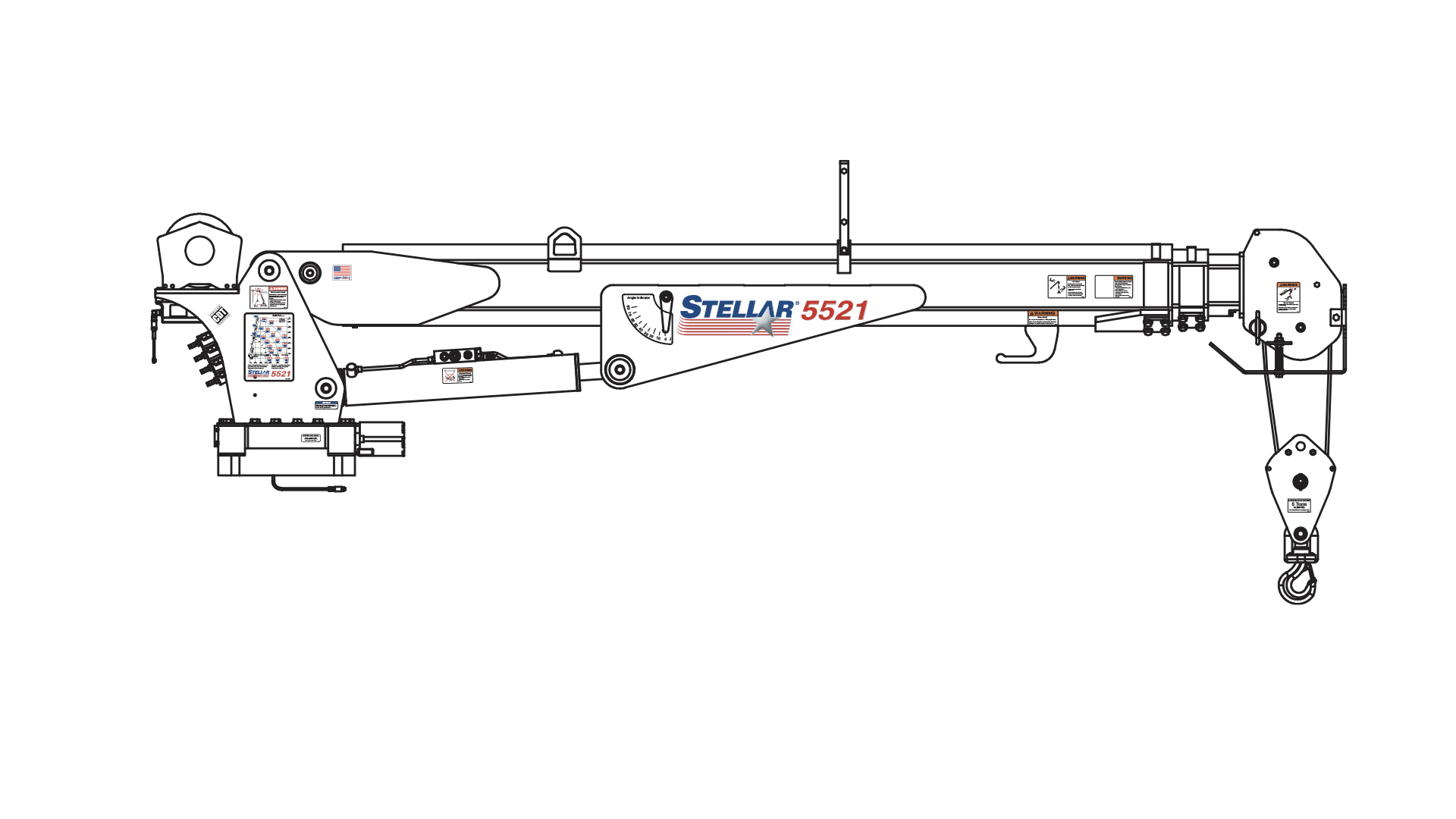

5521 | Telescopic Crane

5,000 lb. capacity

with 21 ft. reach
Hydraulic or Electric Options
  • Crane Rating 29,500 ft-lb (4.10 tm)
  • Max Horizontal Reach 15' (4.57 m) from CL of Crane
  • Max Vertical Lift 21' (6.40 m) from Crane Base
  • Lifting Capacity 5,000 lbs @ 5' 10 (2268 kg @ 1.78 m)
  • 1400 lbs. @ 21' (635 kg @ 6.40 m)
  • Min. Rec. Chassis (GVWR) 16,000 lbs.

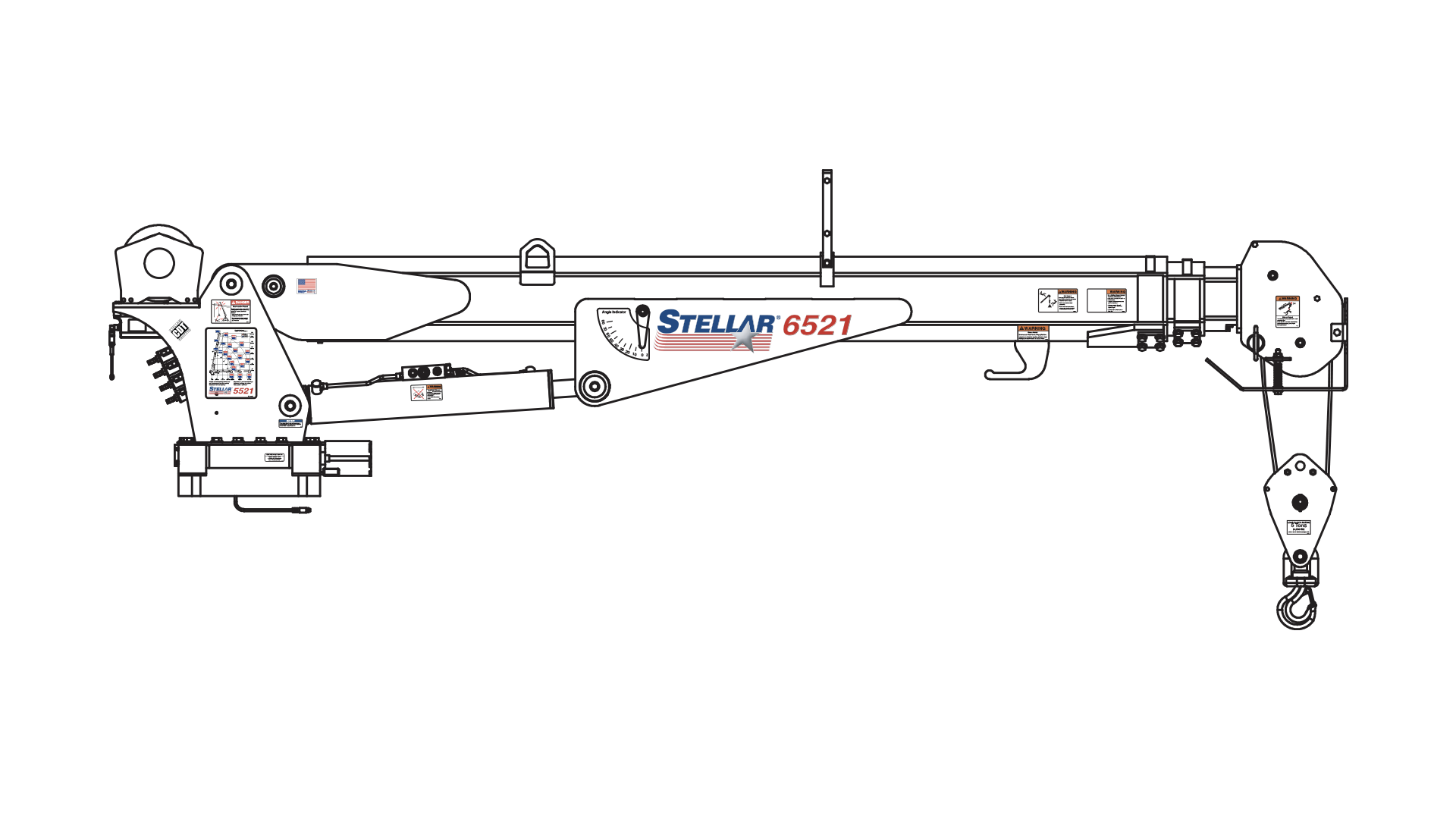

6521 | Telescopic Crane

6,000 lb. capacity

with 21 ft. reach
Hydraulic or Electric Options
  • Crane Rating 35,000 ft-lb (5.30 tm)
  • Max Horizontal Reach 21' (6.40 m) from CL of Crane
  • Max Vertical Lift 22' 11 (6.99 m) from Crane Base
  • Lifting Capacity 6,000 lbs @ 5' 10 (2722 kg @ 1.78 m)
  • 1705 lbs. @ 21' (770 kg @ 6.40 m)
  • Min. Rec. Chassis (GVWR) 16,000 lbs.

Maximize yourproductivity.

With crane capacities ranging from 2,000 lbs. to
14,000 lbs., there’s a crane solution meant just for you.

Get a Quote

Maximize your productivity.

Get a Quote

Stellar® Heavy-DutyMechanic Cranes

Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings, add animations, add shape dividers, increase engagement with call to action and more.

Learn More At Stellar®

7621 | Telescopic Crane

7,000 lb. capacity

with 21 ft. reach
Hydraulic Only
  • Crane Rating 44,840 ft-lb (6.2 tm)
  • Max Horizontal Reach 21' (6.40 m) from CL of Crane
  • Max Vertical Lift 23' (7.01 m) from Crane Base
  • Lifting Capacity 7,500 lbs @ 5' 10 (3,400 kg @ 1.78 m)
  • 2,135 lbs. @ 21' (965 kg @ 6.40 m)
  • Min. Rec. Chassis (GVWR) 19,000 lbs.

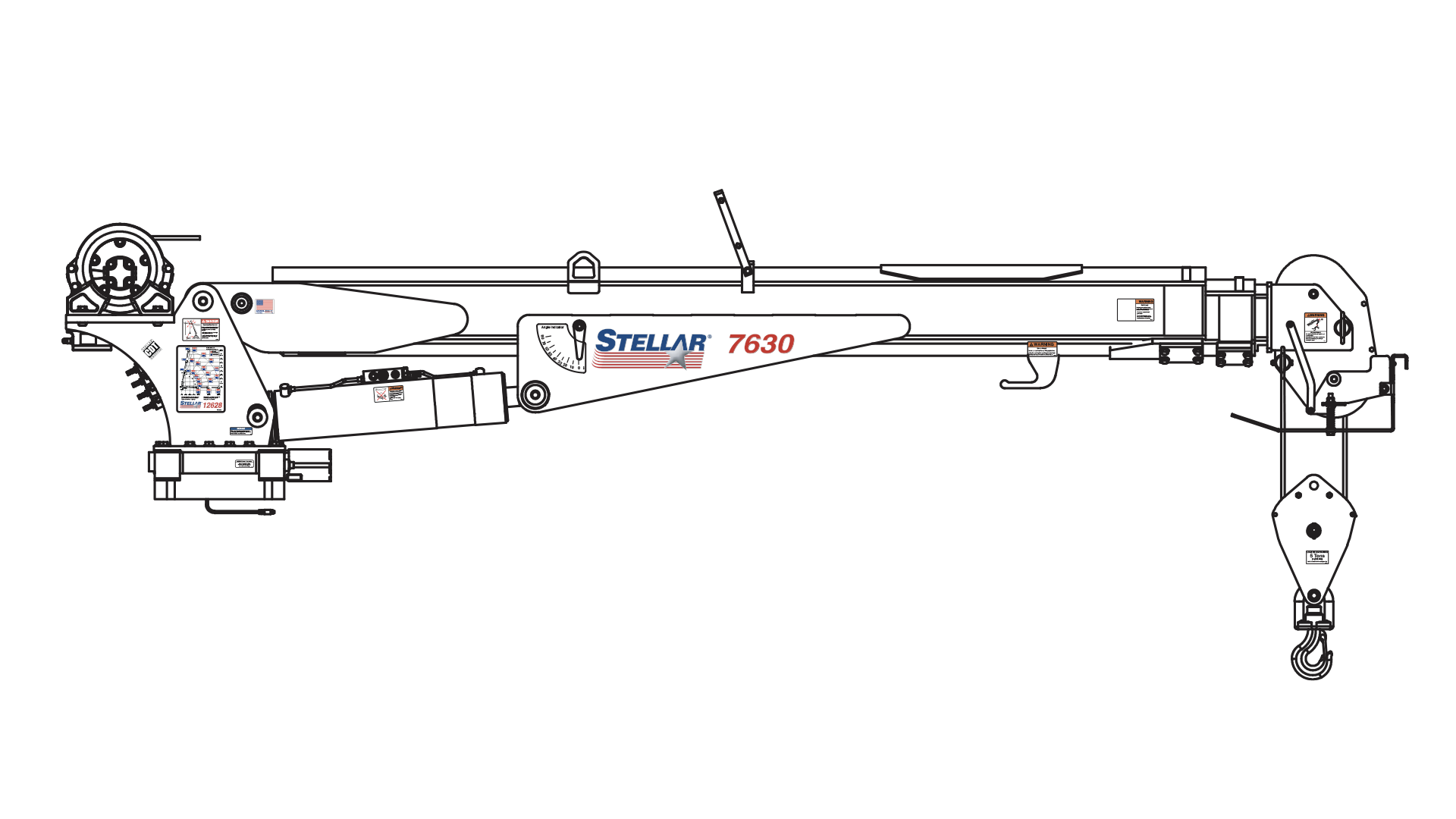

7630 | Telescopic Crane

7,000 lb. capacity

with 30 ft. reach
Hydraulic Only
  • Crane Rating 44,840 ft-lb (6.20 tm)
  • Max Horizontal Reach 30' (9.14 m) from CL of Crane
  • Max Vertical Lift 31' 9 (9.89 m) from Crane Base
  • Lifting Capacity 7,500 lbs @ 5' 10 (3,400 kg @ 1.78 m)
  • 1,490 lbs. @ 30' (965 kg @ 9.14 m)
  • Min. Rec. Chassis (GVWR) 19,000 lbs.

9621 | Telescopic Crane

9,000 lb. capacity

with 21 ft. reach
Hydraulic Only
  • Crane Rating 70,800 ft-lb (9.79 tm)
  • Max Horizontal Reach 21' (6.40 m) from CL of Crane
  • Max Vertical Lift 23' (7.01 m) from Crane Base
  • Lifting Capacity 9,000 lbs @ 7' 10 (4,080 kg @ 2.39 m)
  • 3,365 lbs. @ 21' (1,525 kg @ 6.40 m)
  • Min. Rec. Chassis (GVWR) 25,999 lbs.

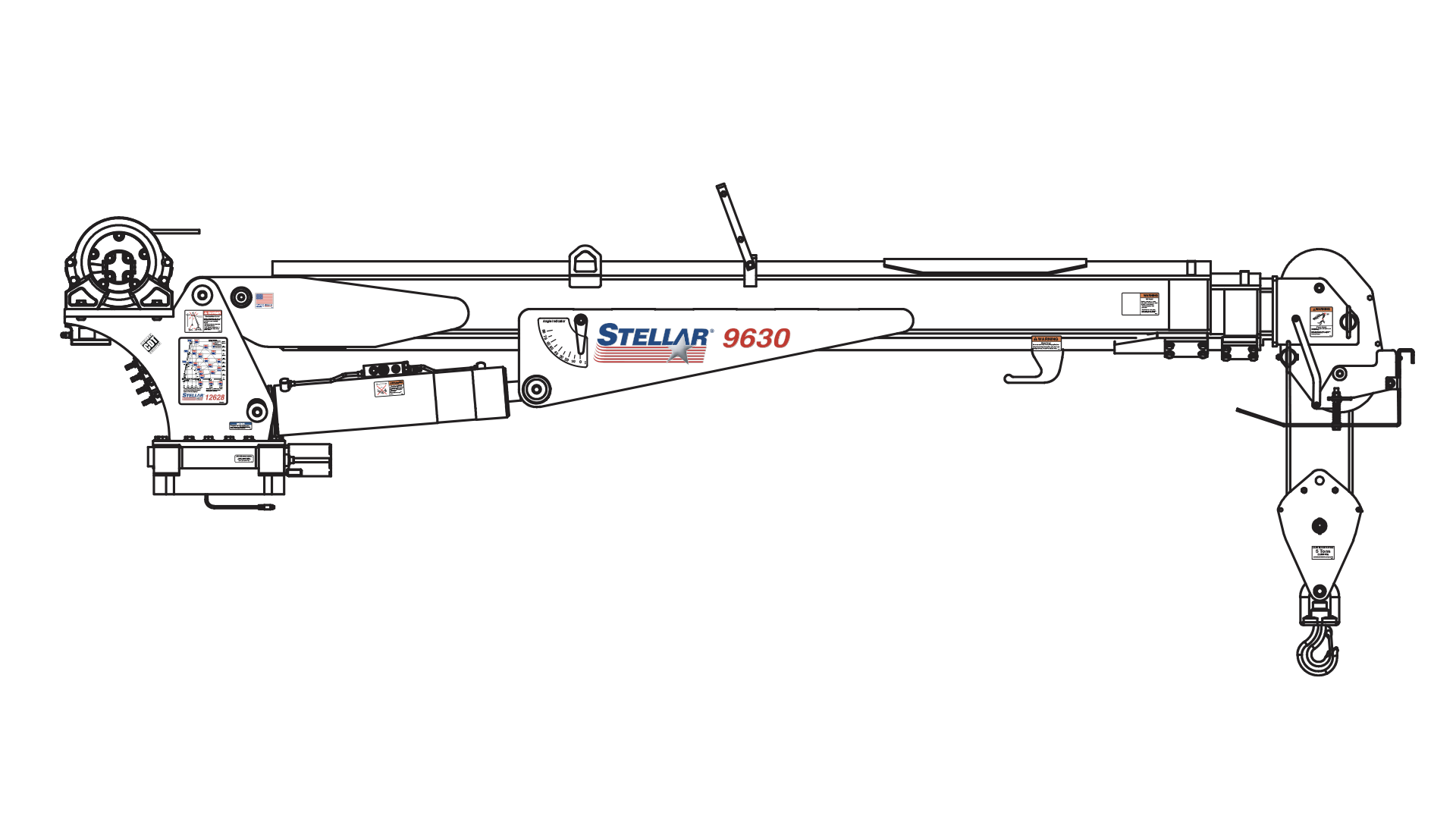

9630 | Telescopic Crane

9,000 lb. capacity

with 30 ft. reach
Hydraulic Only
  • Crane Rating 70,800 ft-lb (9.79 tm)
  • Max Horizontal Reach 30' (9.14 m) from CL of Crane
  • Max Vertical Lift 31' 9 (9.68 m) from Crane Base
  • Lifting Capacity 9,000 lbs @ 7' 10 (4,080 kg @ 2.39 m)
  • 2,360 lbs. @ 30' (1,070 kg @ 9.14 m)
  • Min. Rec. Chassis (GVWR) 25,999 lbs.

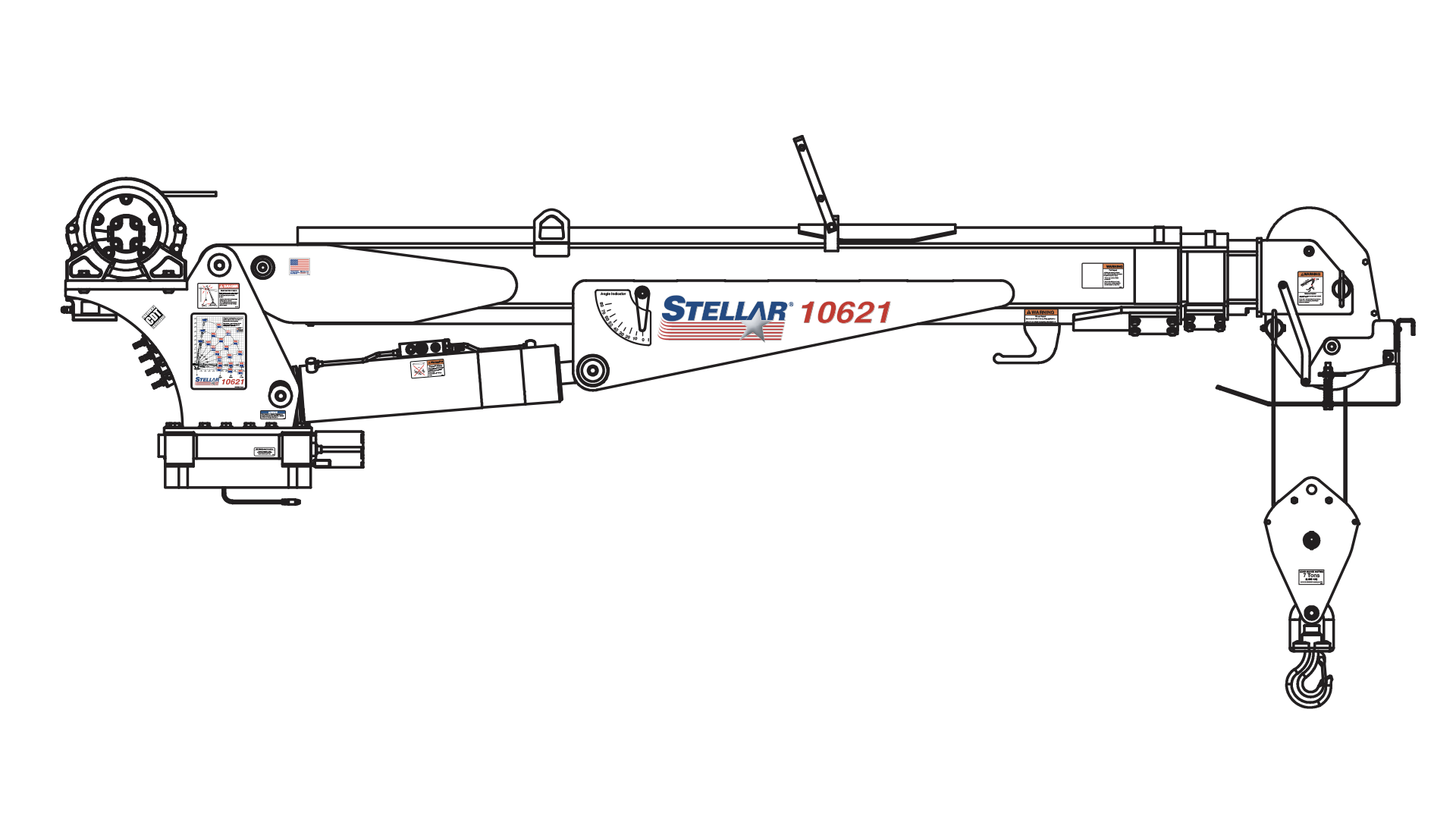

10621 | Telescopic Crane

10,000 lb. capacity

with 21 ft. reach
Hydraulic Only
  • Crane Rating 70,800 ft-lb (9.79 tm)
  • Max Horizontal Reach 21' (6.40 m) from CL of Crane
  • Max Vertical Lift 23' (7.01 m) from Crane Base
  • Lifting Capacity 10,000 lbs @ 7' (4,535 kg @ 2.13 m)
  • 3,365 lbs. @ 21' (1,525 kg @ 6.40 m)
  • Min. Rec. Chassis (GVWR) 25,999 lbs.

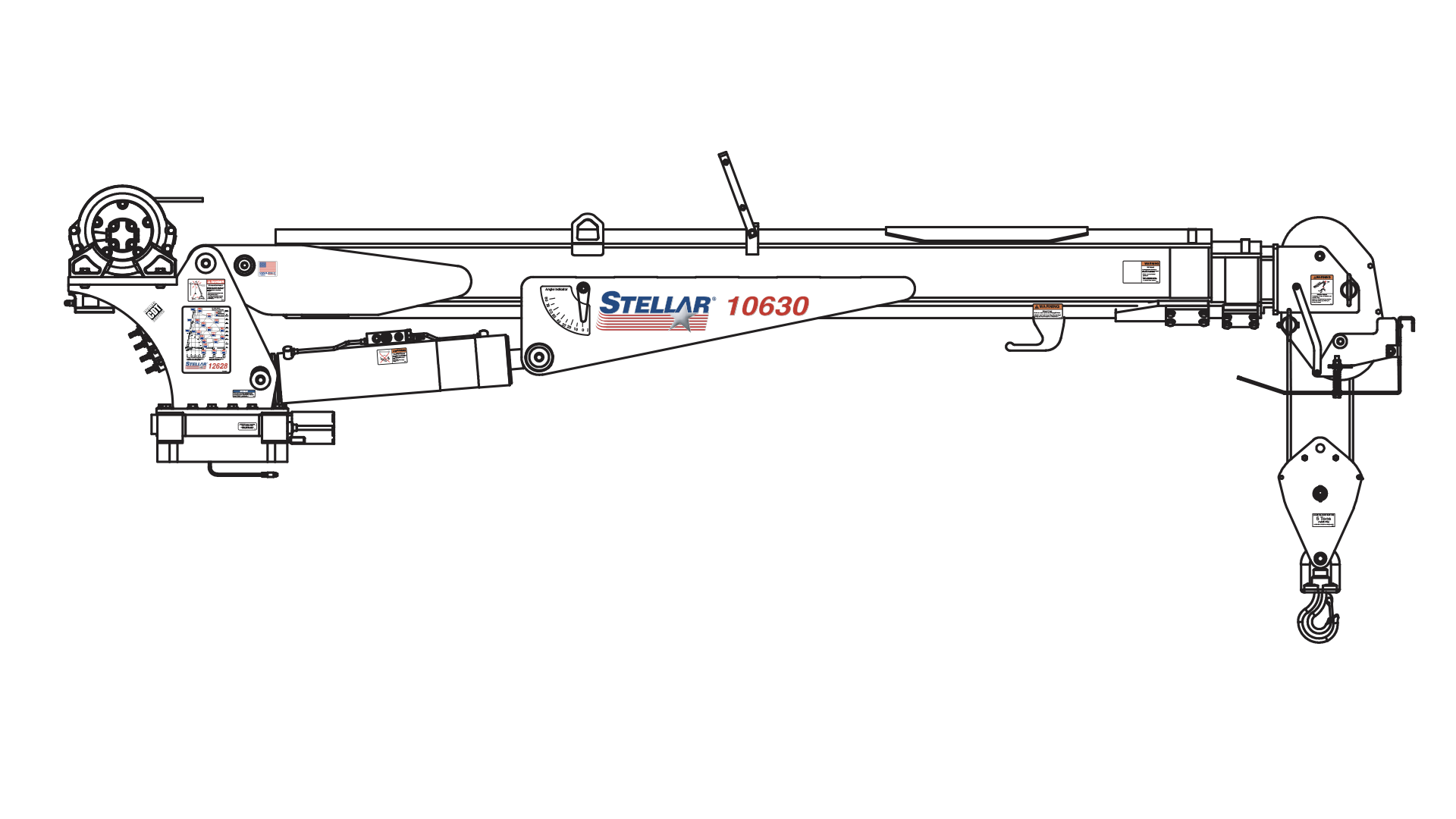

10630 | Telescopic Crane

10,000 lb. capacity

with 30 ft. reach
Hydraulic Only
  • Crane Rating 70,800 ft-lb (9.79 tm)
  • Max Horizontal Reach 30' (9.14 m) from CL of Crane
  • Max Vertical Lift 31' 9 (9.68 m) from Crane Base
  • Lifting Capacity 10,000 lbs @ 7' (4,535 kg @ 2.13 m)
  • 2,360 lbs. @ 30' (1,070 kg @ 9.14 m)
  • Min. Rec. Chassis (GVWR) 25,999 lbs.

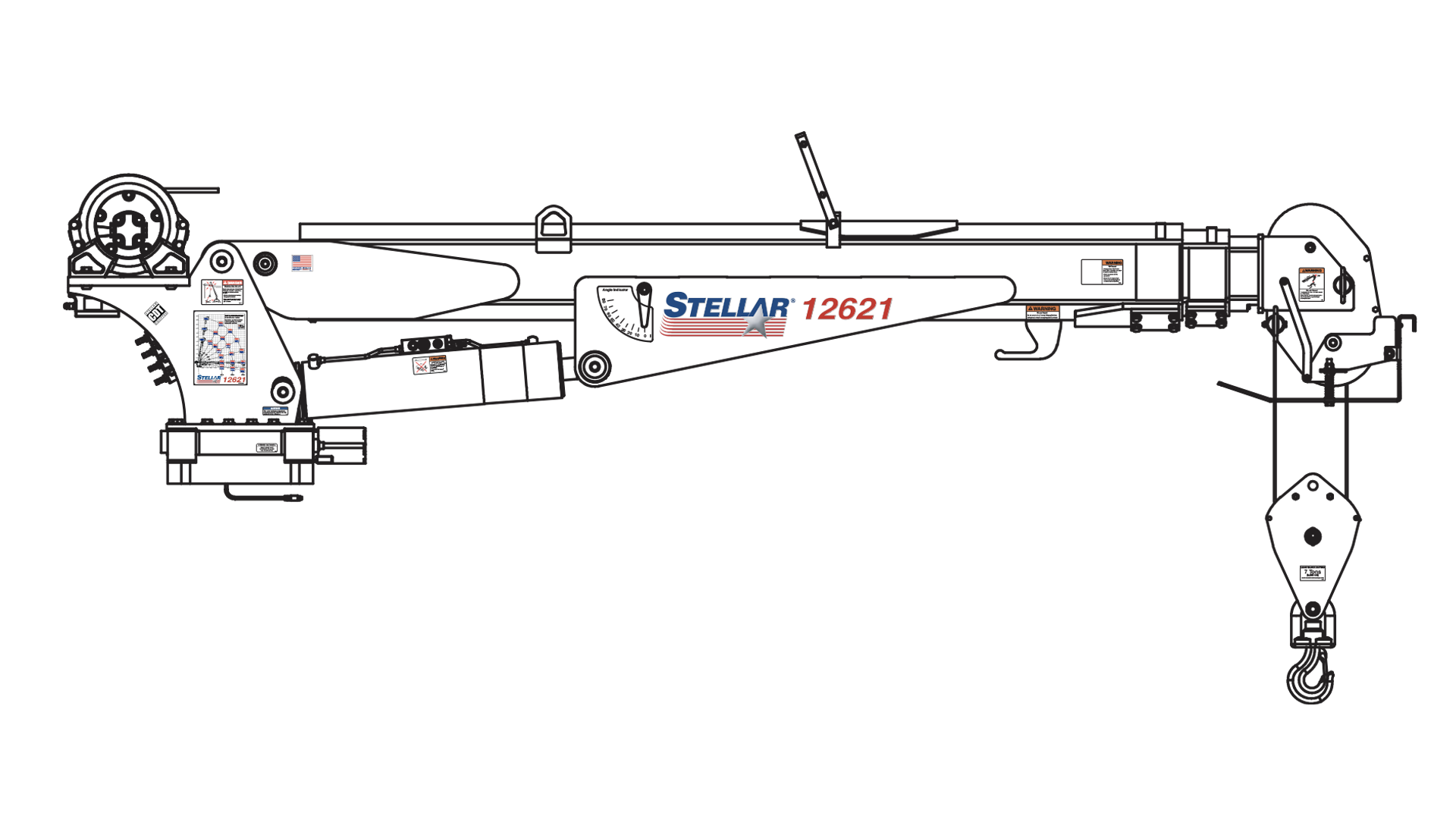

12621 | Telescopic Crane

12,000 lb. capacity

with 21 ft. reach
Hydraulic Only
  • Crane Rating 77,800 ft-lb (10.76 tm)
  • Max Horizontal Reach 21' (6.40 m) from CL of Crane
  • Max Vertical Lift 23' (7.01 m) from Crane Base
  • Lifting Capacity 12,000 lbs @ 6' 5 (5,440 kg @ 1.97 m)
  • 3,705 lbs. @ 21' (1,680 kg @ 6.40 m)
  • Min. Rec. Chassis (GVWR) 25,999 lbs.

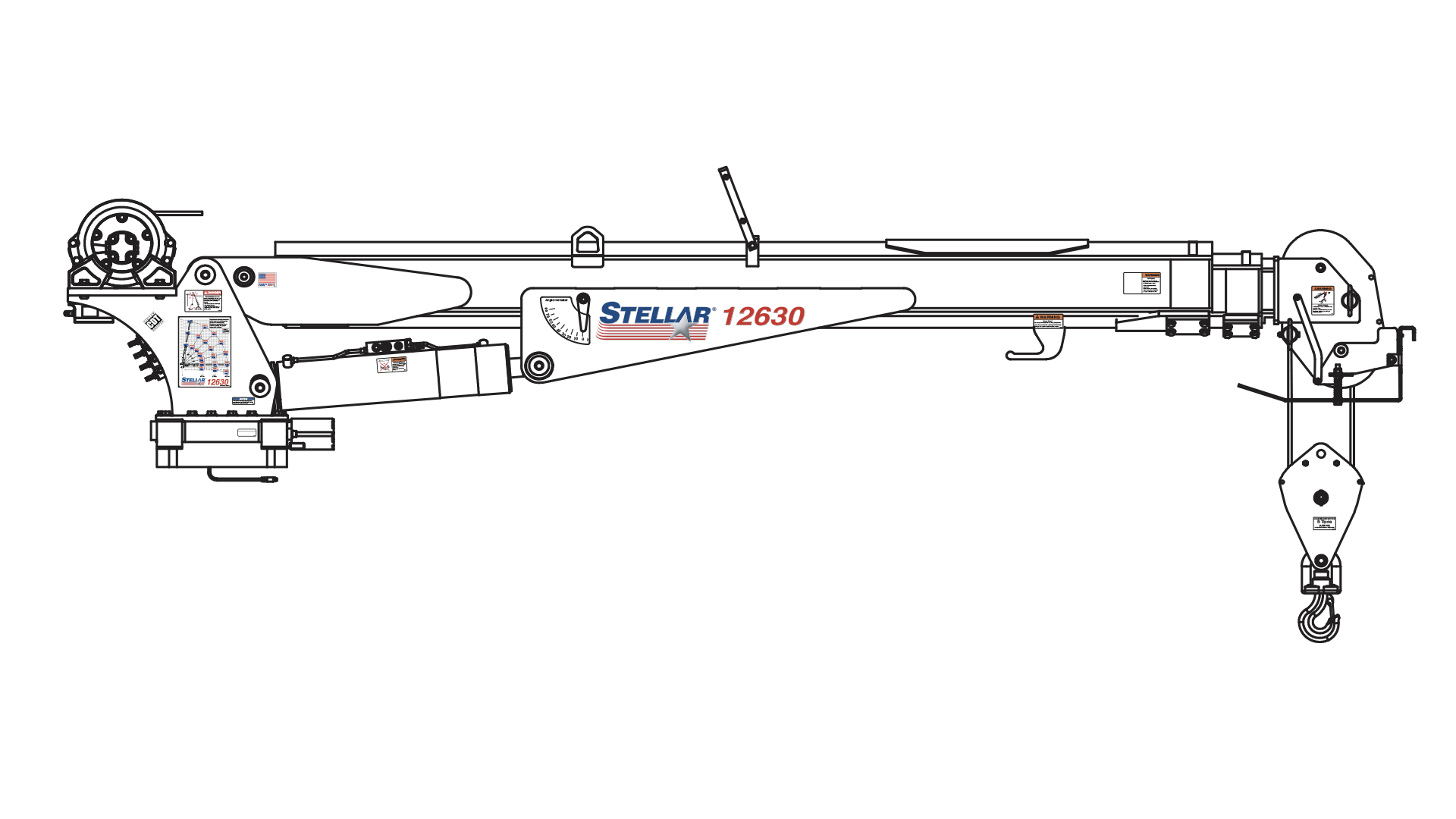

12630 | Telescopic Crane

12,000 lb. capacity

with 30 ft. reach
Hydraulic Only
  • Crane Rating 77,800 ft-lb (10.76 tm)
  • Max Horizontal Reach 30' (9.14 m) from CL of Crane
  • Max Vertical Lift 31' 9 (9.68 m) from Crane Base
  • Lifting Capacity 12,000 lbs @ 6' 5 (5,440 kg @ 1.97 m)
  • 2,590 lbs. @ 30' (1,175 kg @ 9.14 m)
  • Min. Rec. Chassis (GVWR) 25,999 lbs.

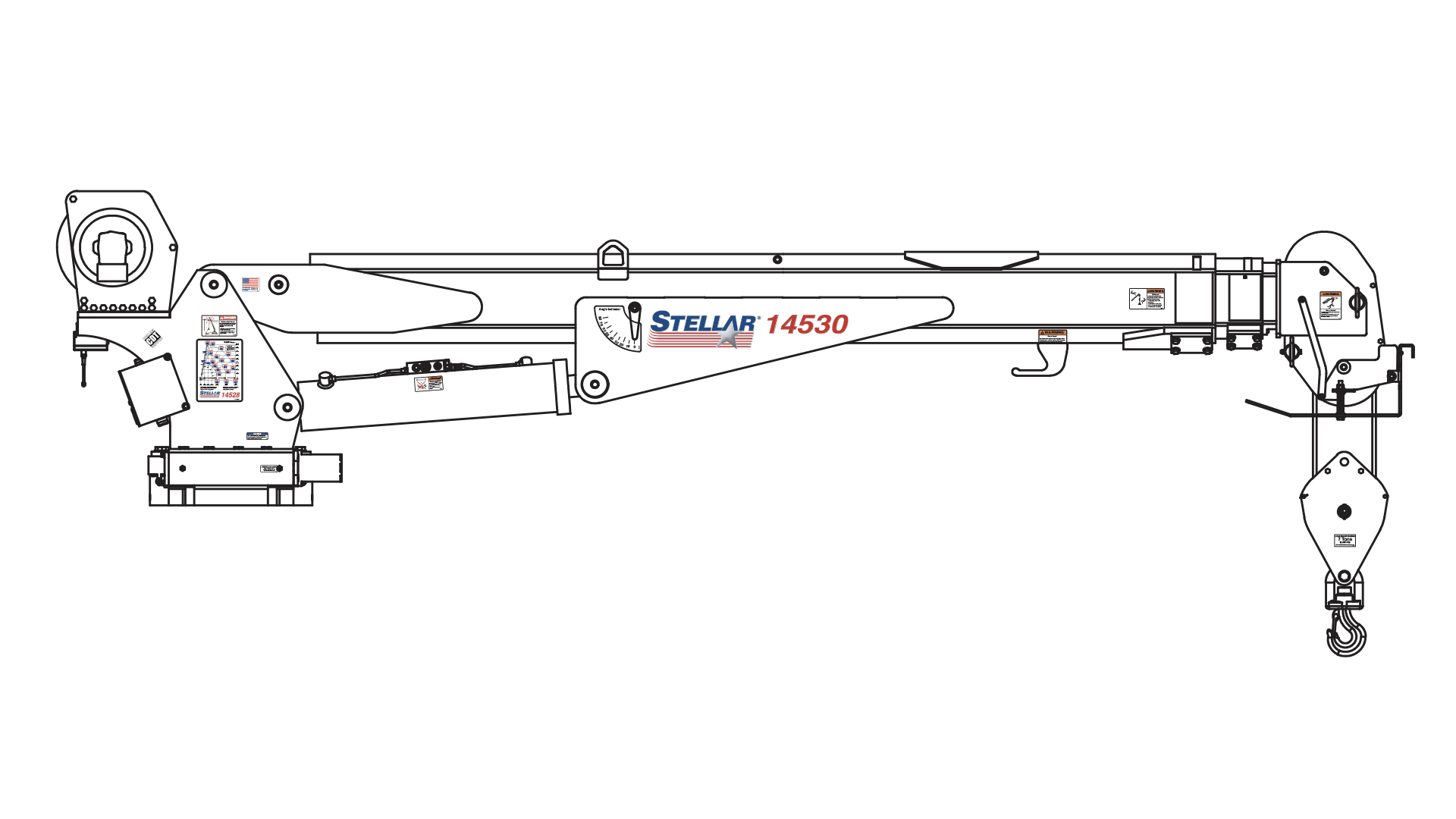

14530 | Telescopic Crane

14,000 lb. capacity

with 30 ft. reach
Hydraulic Only
  • Crane Rating 82,600 ft-lb (11.42 tm)
  • Max Horizontal Reach 30' (9.14 m) from CL of Crane
  • Max Vertical Lift 31' 9 (9.68 m) from Crane Base
  • Lifting Capacity 14,000 lbs @ 5' (6,350 kg @ 1.52 m)
  • 2,750 lbs. @ 30' (1,247 kg @ 9.14 m)
  • Min. Rec. Chassis (GVWR) 33,000 lbs.

Stellar® EC ElectricMechanic Cranes

For ease of operation, and economical investment, the EC line of cranes are built to the highest standards demanded of all Stellar® products.

Learn More At Stellar®

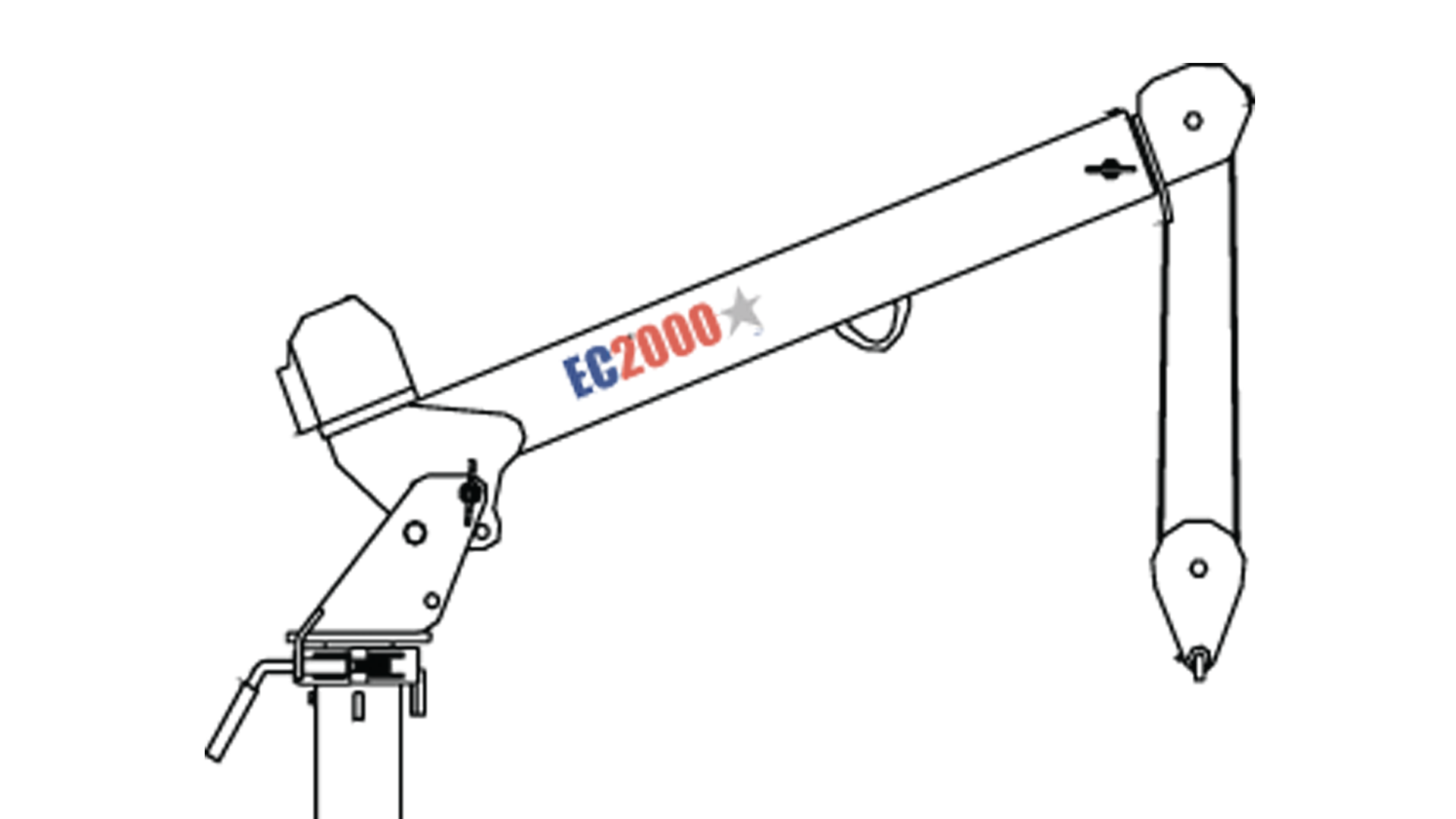

EC2000 | Electric Crane

2,000 lb. capacity

with 7 ft. reach
Electric Only
  • Crane Rating 6,500 ft-lb
  • Max Horizontal Reach 7' (2.13 m) from CL of Crane
  • Max Vertical Lift 10' 9 (3.28 m) from Crane Base
  • Lifting Capacity 1,580 lbs @ 4' (715 kg @ 1.22 m)
  • 930 lbs. @ 7' (422 kg @ 2.13 m)
  • Min. Rec. Chassis (GVWR) 8,600 lbs.

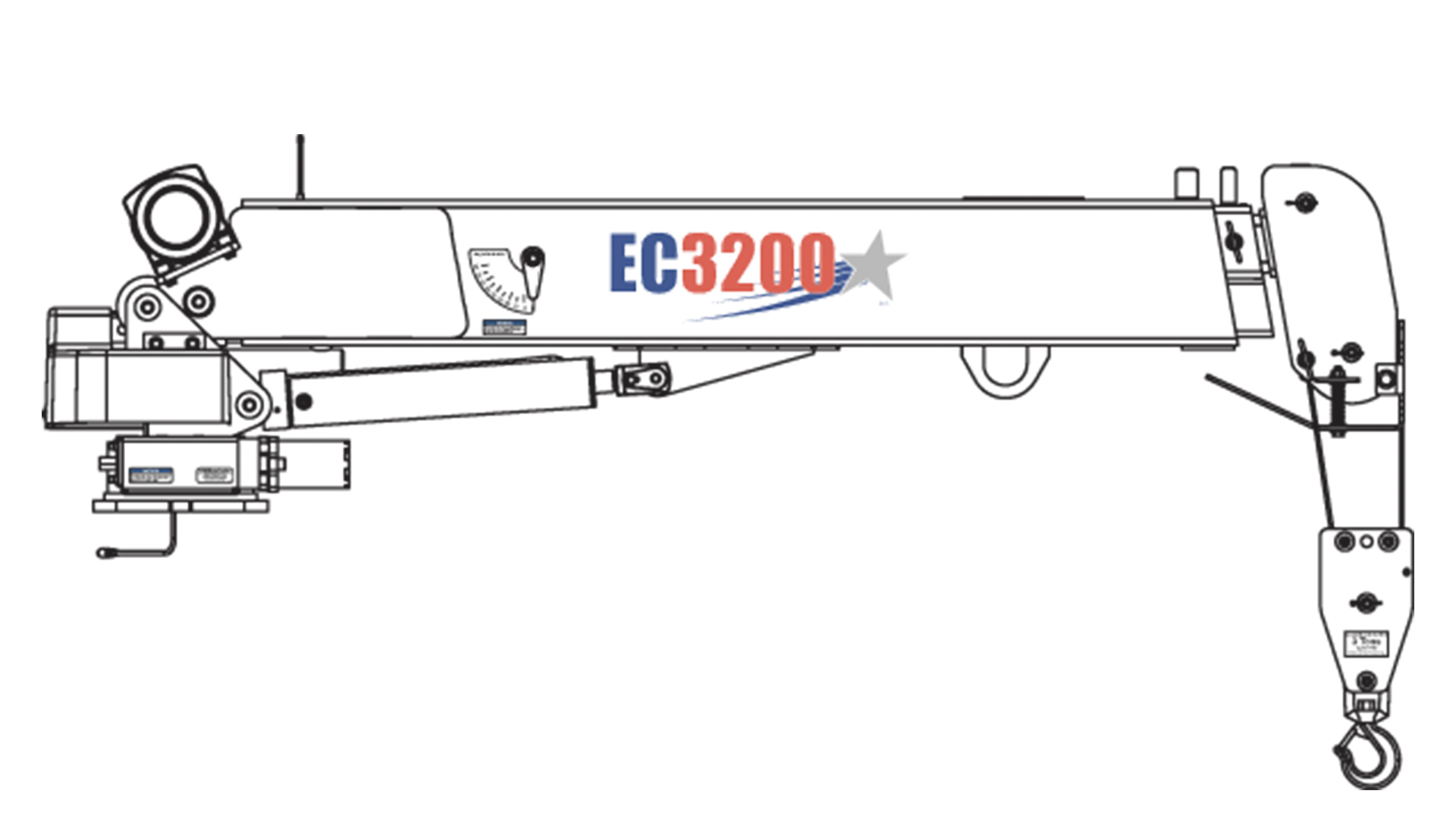

EC3200 | Electric Crane

3,200 lb. capacity

with 15 ft. reach
Electric Only
  • Crane Rating 11,500 ft-lb (1.59 tm)
  • Max Horizontal Reach 15' (4.57 m) from CL of Crane
  • Max Vertical Lift 16' 2 (4.92 m) from Crane Base
  • Lifting Capacity 3,200 lbs @ 3' 6 (1,451 kg @ 1.10 m)
  • 640 lbs. @ 15' (260 kg @ 4.60 m)
  • Min. Rec. Chassis (GVWR) 10,500 lbs.

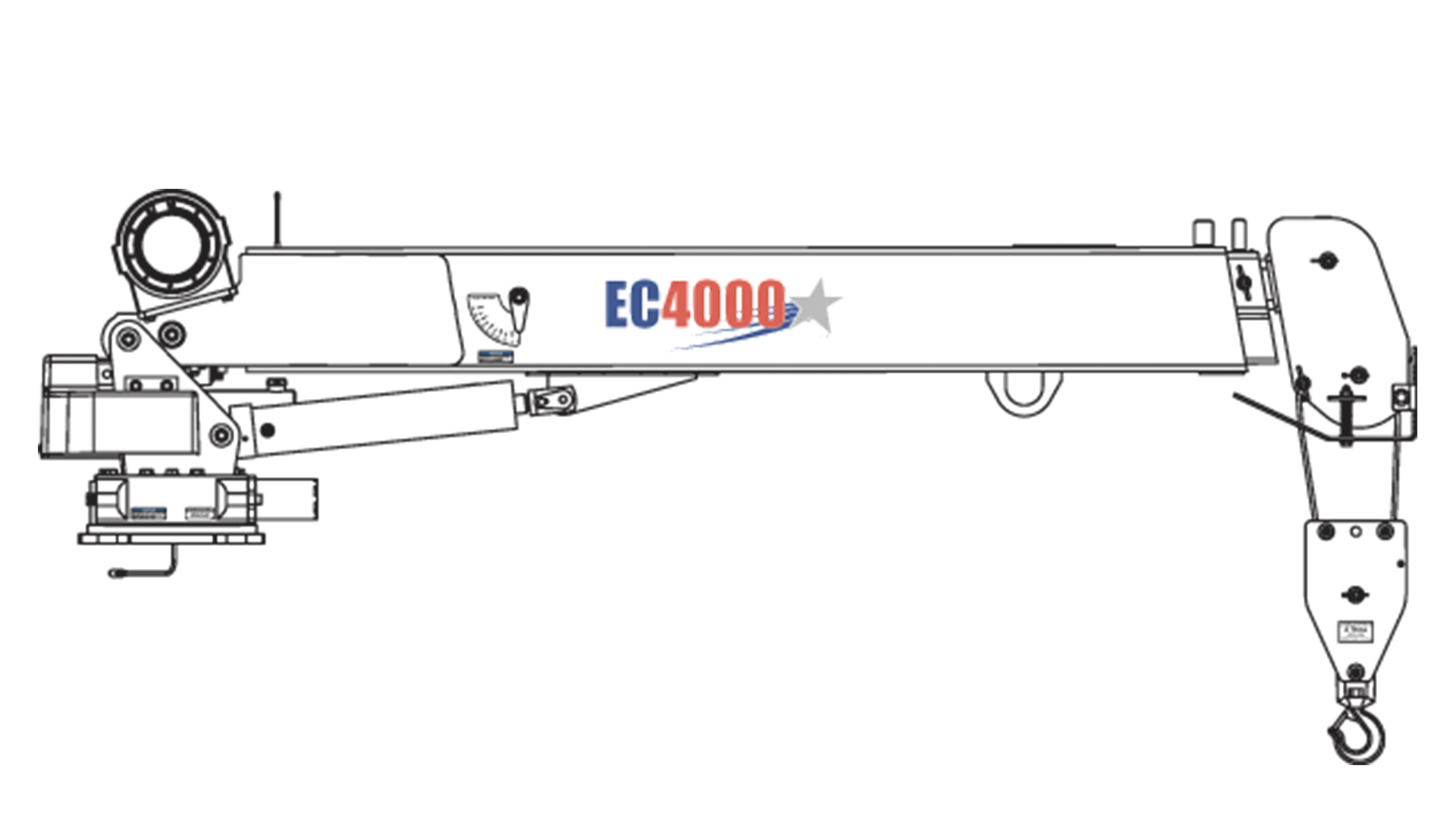

EC4000 | Electric Crane

4,000 lb. capacity

with 16 ft. reach
Electric Only
  • Crane Rating 16,000 ft-lb (2.21 tm)
  • Max Horizontal Reach 16' (4.88 m) from CL of Crane
  • Max Vertical Lift 17' 4 (5.28 m) from Crane Base
  • Lifting Capacity 4,000 lbs @ 4' (1,814 kg @ 1.22 m)
  • 935 lbs. @ 16' (420 kg @ 4.88 m)
  • Min. Rec. Chassis (GVWR) 14,500 lbs.

EC4000 | Electric Crane

4,000 lb. capacity

with 20 ft. reach
Electric Only
  • Crane Rating 16,000 ft-lb (2.21 tm)
  • Max Horizontal Reach 20' (6.10 m) from CL of Crane
  • Max Vertical Lift 21' 3 (6.48 m) from Crane Base
  • Lifting Capacity 4,000 lbs @ 4' (1,814 kg @ 1.22 m)
  • 800 lbs. @ 20' (363 kg @ 6.1 m)
  • Min. Rec. Chassis (GVWR) 14,500 lbs.

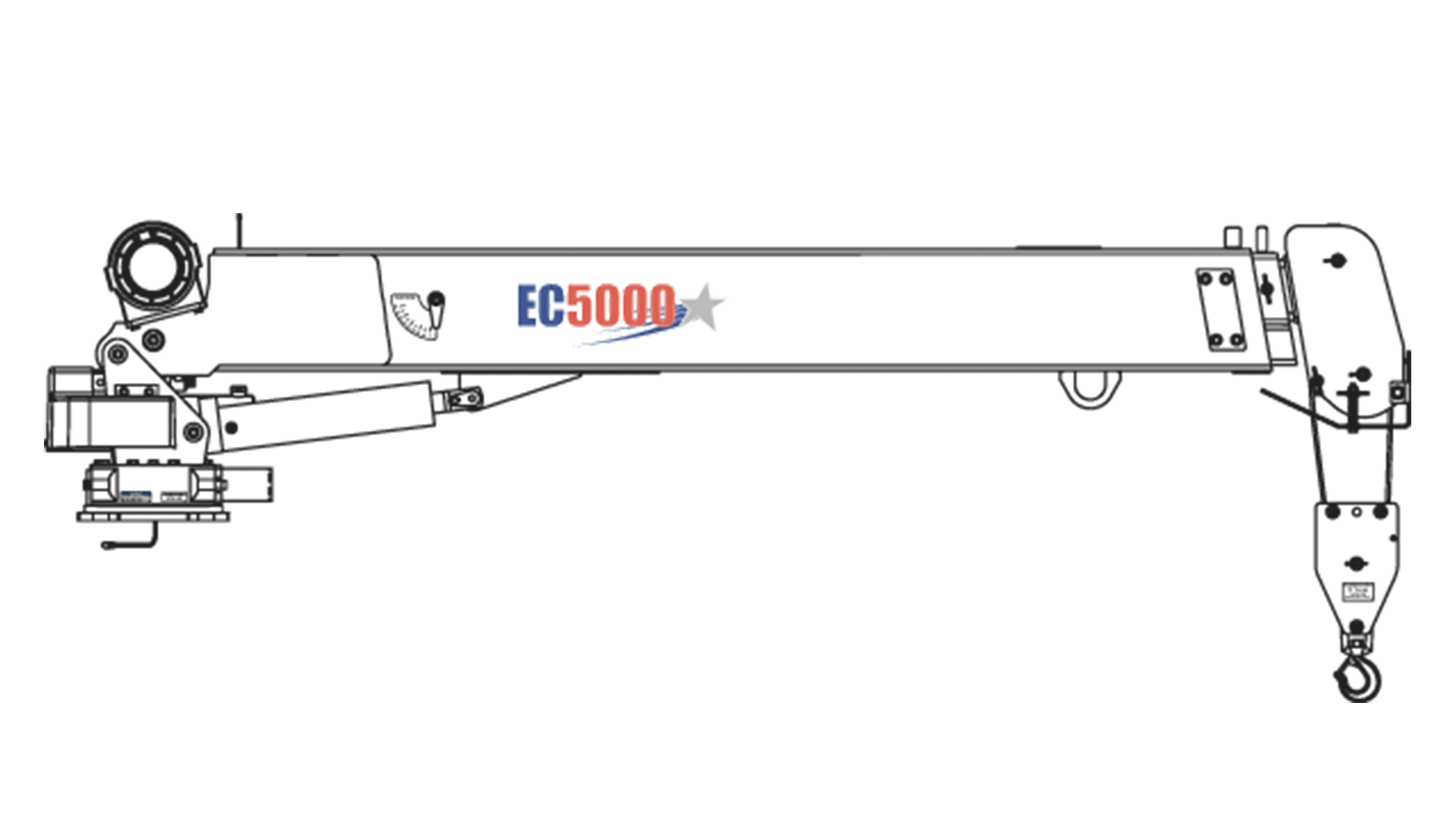

EC5000 | Electric Crane

5,000 lb. capacity

with 20 ft. reach
Electric Only
  • Crane Rating 25,000 ft-lb (3.46 tm)
  • Max Horizontal Reach 20' (6.10 m) from CL of Crane
  • Max Vertical Lift 21' 3 (6.48 m) from Crane Base
  • Lifting Capacity 5,000 lbs @ 5' (2,268 kg @ 1.50 m)
  • 1,250 lbs. @ 20' (565 kg @ 6.10 m)
  • Min. Rec. Chassis (GVWR) 14,500 lbs.

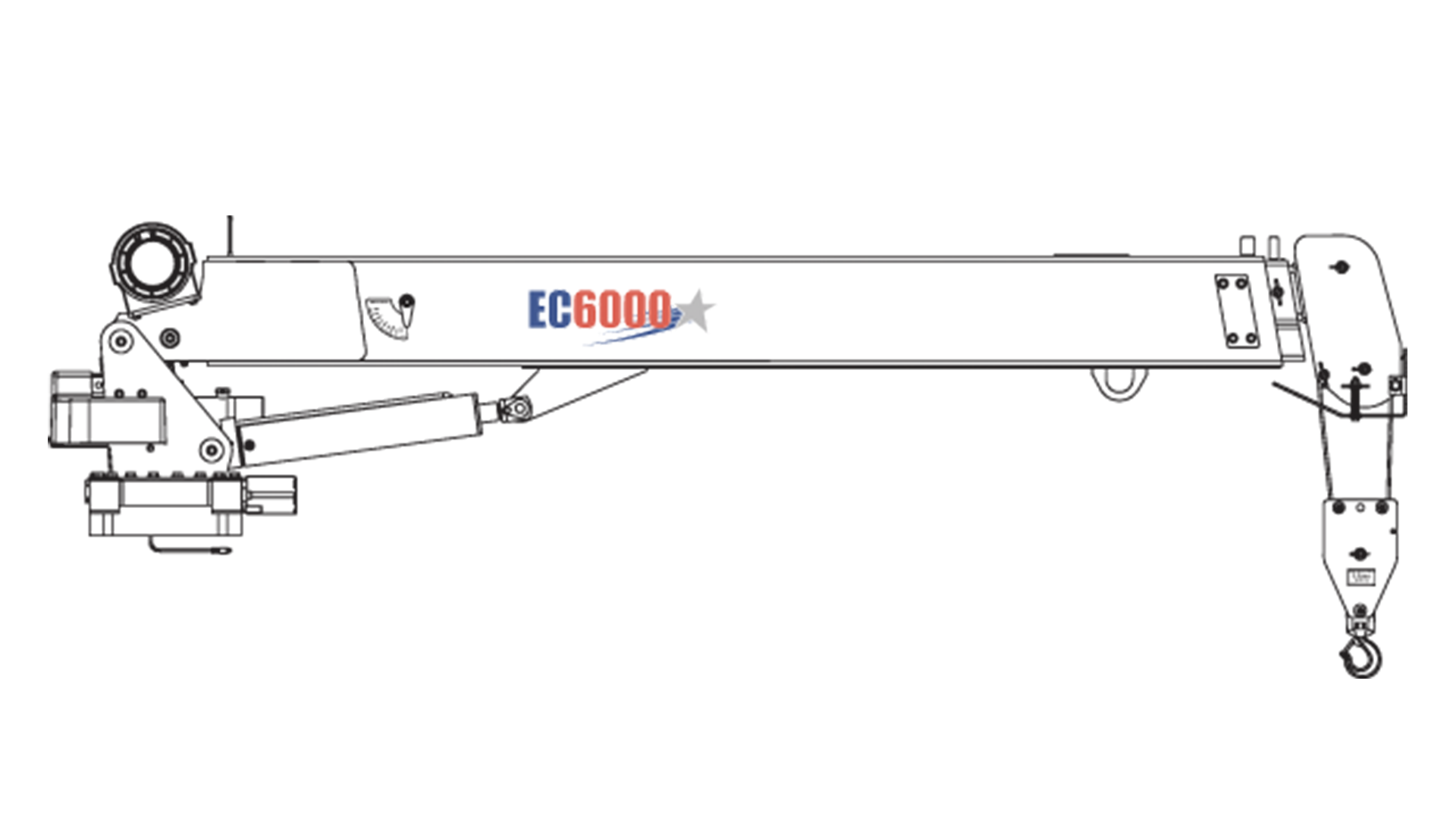

EC6000 | Electric Crane

6,000 lb. capacity

with 21 ft. reach
Electric Only
  • Crane Rating 38,000 ft-lb (5.25 tm)
  • Max Horizontal Reach 21' (6.40 m) from CL of Crane
  • Max Vertical Lift 22' 10 (6.96 m) from Crane Base
  • Lifting Capacity 6,000 lbs @ 6' 4 (2,720 kg @ 1.90 m)
  • 1,810 lbs. @ 21' (820 kg @ 6.40 m)
  • Min. Rec. Chassis (GVWR) 16,000 lbs.
